Technical data

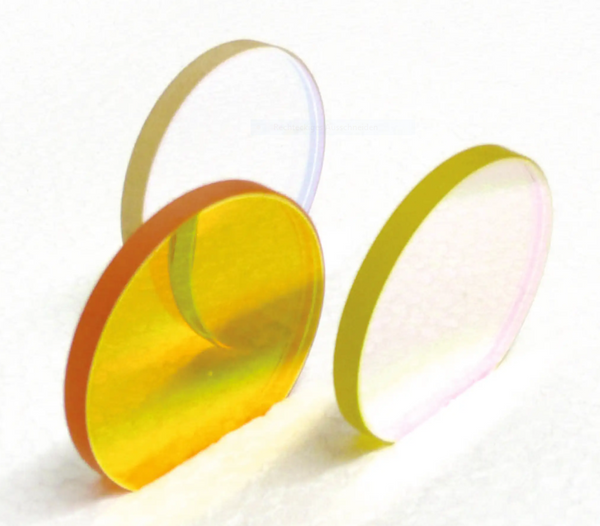

Interference filter, yellow, 578 nm nm

Article no: 08467-00
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Application

Interference filter, tuned to the yellow mercury spectral line. Compatible with magnet system ( component holder (art. no. 08043-00) and ring for component holder ( art. no. 08044-00)).



Equipment and technical data

  • Wavelength: 578 nm
  • diameter: 40 mm
  • thickness: 3 mm
  • Minimum transmission: 60%
  • accuracy: 3 nm
  • Bandwidth: approx. 10 nm
  • interference transmission < 1%
