Technical data

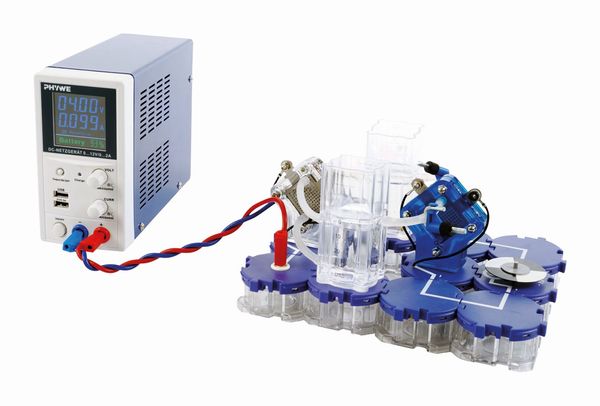

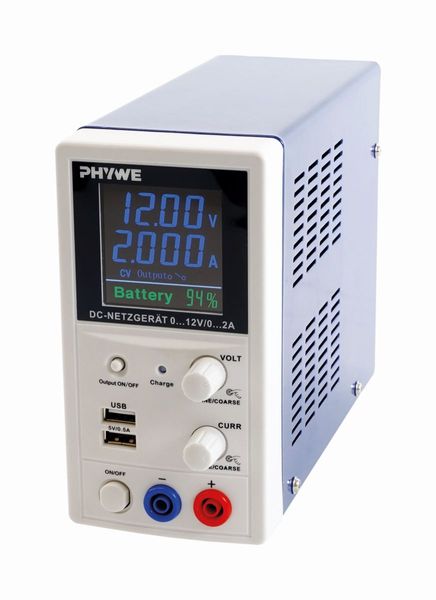

PHYWE Mobile power supply to go, rechargeable DC 0...12 V / 0...2A

Article no: 13510-99

Function and Applications

Thanks to the built-in rechargeable battery, your students can experiment with electricity and voltage anywhere with the PHYWE Rechargeable power supply. The battery supplies current for 90 minutes under full load and can thus be used independently of the mains current. This makes it particularly relevant for grades 5 and 6, where science lessons take place in the classrooms which tend to be ill equipped with power sockets.

Equipment and Technical Data

  • Student power supply unit with external mains adapter (30 W charger)

  • 0...12 V / 0...2 A DC

  • Battery capacity under full load (24 W): 90 minutes

  • With two USB-A charging sockets for SMARTsense sensors and mobile devices

  • Voltage and current adjustable, coarse and fine control

  • Display: voltage, current, battery status (% charged), constant current, constant voltage, charging indicator

  • Can also be used in mains operation when battery is empty

  • Overload protection: current limiter circuit and short-circuit proof

  • Operating voltage 100...240 V AC; 50/60 Hz

  • Size (Wx H x D): 80 x 160 x 215 mm

  • Weight: 1.2 kg






PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10 – 37079 Göttingen – Germany
www.phywe.com
