Temperature regulation with Cobra SMARTsense Code

Article no: P9517669

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> Unknown

Principle

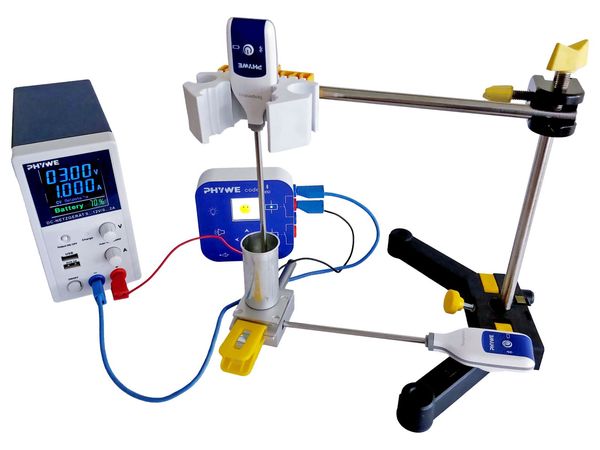

Experimental set-up for regulating the temperature of a Peltier element. In the experiment a drink is cooled at a constant temperature.

Benefits

Programming of the controller with a trigger function.
Use of standard Cobra SMARTsense sensors for teaching in schools and universities.

Tasks

Learning objectives

The students learn how to create a temperature controller with just a few components.
Trigger function programming.

Cobra SMARTsense Code - Output device for switching relays, LEDs, display	12953-00	1
Cobra SMARTsense Temperature - Sensor for measuring temperature -40 ... 125 °C (Bluetooth)	12903-00	2
Thermal generator for student experiments	05770-00	1
PHYWE Mobile power supply to go, rechargeable DC 0...12 V / 0...2A	13510-99	1
Connecting cable, 32 A, red, various lengths	07360-01	1
Beaker, aluminum, polished	05903-01	1
Support base, separable for 2 rods	02001-00	1
Boss head	02043-00	1
Stand rods, stainless steel, various sizes	02059-00	1
Stand rods, stainless steel, various sizes	02031-00	1
Holder for Cobra SMARTsense	12960-00	1
measureAPP - the free measurement software for all devices and operating systems	14581-61	1
