Technical data

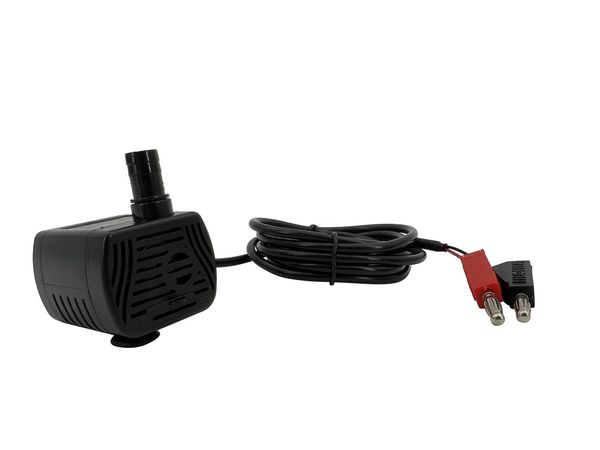

Water pump for experiment chamber and ecosystem

Article no: 64837-10
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> Unknown

Function and Applications

The water pump is suitable for use with the PHYWE experiment chamber and the PHYWE ecosystem, e.g. for setting up a greenhouse. The soil moisture is measured with the SMARTsense Soil Humidity Sensor and the water supply is controlled by the water pump via the SMARTsense Code controller.



Equipment and Technical Data

  • Power supply: 5.5 - 12 V

  • Wattage: 1 - 3 W

  • Hmax: 0.4 - 1.5 m

  • Qmax: 200 L/H

  • 4 mm plug for connection to a power supply

  • Length of the cable: 135 cm
