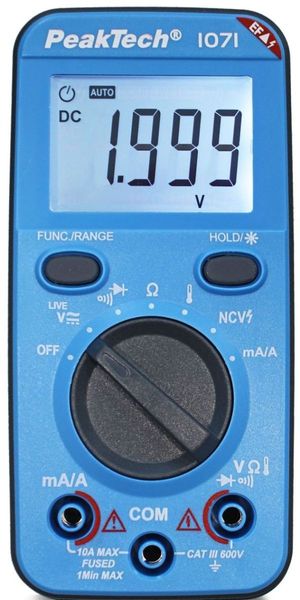

Technical data Digital student multimeter, 600V AC/DC, 2000mA AC/DC, 20 MΩ, -200...1200°C Article no: EAK-P-1071 <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown Function and Applications Multi-purpose measuring instrument for measuring voltage, current, resistance and temperature for direct and alternating current, especially in student experiments. Benefits Robust ceramic fuse for high safety Ergonomically designed for students Measurement of AC and DC voltage as well as AC and DC current Resistance measurement, temperature measurement, continuity and diode tester Non-contact AC voltage detection (NCV) Display changes from blue to red when the measuring ranges are exceeded Built-in torch (LED) Equipment and Technical Data Measurement ranges: DC voltage: 0...600 V AC voltage: 0...600 V~ DC current: 0...2000 mA AC current: 0...2000 mA~ Resistance: 0...20 MOhm Temperature: -200°C...1200°C Supply voltage:2 × 1,5 V AAA batteries Dimensions H × W × D (mm):130 × 63 × 35 Mass: 110 g 4 mm safety sockets 3 1/2-digit LCD with 2000 counts Backlit (blue, red when measuring range is exceeded) Automatic range selection Continuity test and diode test function Live test and NCV voltage tester Automatic switch-off and battery status indicator Sturdy ABS plastic housing Complies with safety standards: EN 61010-1, CAT III 600 V Accessories included: AAA batteries, test leads, thermocouple, operating instructions

Digital student multimeter, 600V AC/DC, 2000mA AC/DC, 20 MΩ, -200...1200°C
