Technical data

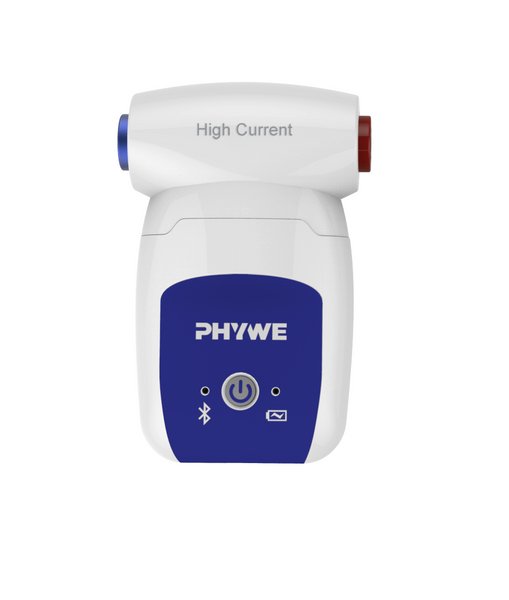

Cobra SMARTsense High Current - Sensor for measuring electric current

Article no: 12925-03

Function and Applications

Use the Cobra SMARTsense High Current to measure electric currents of up to ± 10 A and investigate the basic concepts of electricity with your pupils in a child’s play way.

With sampling rates of up to 100 kHz and a resolution of 5 mA, the digital current sensor can be used flexibly in experiments ranging from ferromagnetic hysteresis to enthalpy determinations.

Connect the Cobra SMARTsense High Current wirelessly via Bluetooth or wired via USB to the free and award-winning measuring software measureAPP – available for iOS, Android, Windows and Linux.

Switch on. Connect. Start measuring.

Benefits

  • Get started straight away with any Bluetooth-enabled device and the free measureAPP.
  • Intelligent and efficient power management for up to 50 teaching hours on one battery charge.
  • Up to 100,000 readings per second guarantee precision.
  • The 4 mm sockets are compatible with all common systems.

Technical Specification

  • Measuring channel:
    Current
    • Measuring range: ± 10 A
    • Resolution: 5 mA
    • Sampling rate: 20 kHz Bluetooth, 100 kHz USB
  • Short-circuit protected up to 12 A
  • Bluetooth version: 5.4
  • Battery: Rechargeable lithium polymer battery
  • Included: USB-A to USB-C charging cable
