Cobra SMARTlink

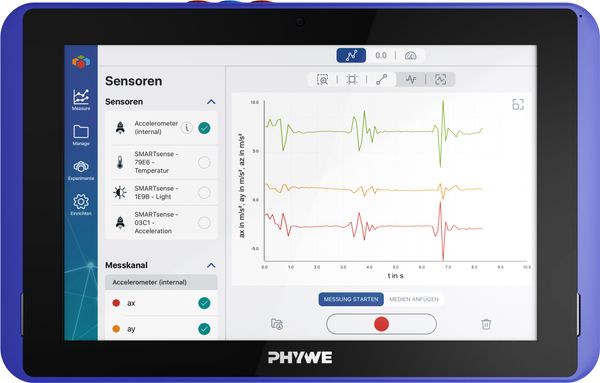

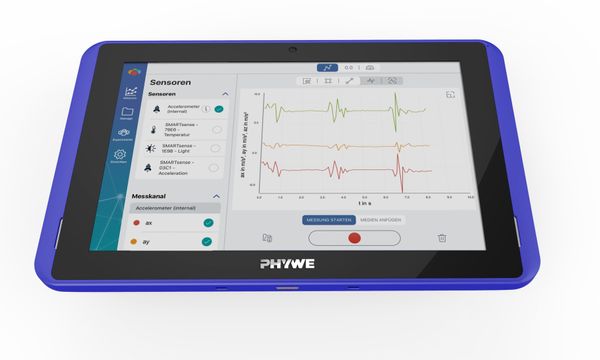

Cobra SMARTlink WLAN - The 10-inch Android tablet with 7 integrated measurement sensors and PHYWE Augmented Reality

Simple. Digital. Experimentation.

Function and Applications

Cobra SMARTlink is a state-of-the-art, powerful, and mobile measurement, display, and data acquisition device with a 10.1-inch touchscreen in full HD resolution. With its seven internal measurement sensors and award-winning measurement software measureAPP, Cobra SMARTlink is particularly well suited for use in student experiments, offering ease of use and reliability. The pre-installed measureAPP Exam ensures that you are perfectly equipped today for the exams of tomorrow. The new Cobra SMARTlink supports PHYWE Augmented Reality. This allows you to enhance classic experiments with digital measurement data acquisition and virtual content, creating an unprecedented understanding of physical phenomena (available in 2026).

Benefits

• Equipment - Start measuring directly with 7 internal sensors and the pre-installed measuring software measureAPP.
• Performance - A powerful CPU and sufficient RAM ensure that everything always runs smoothly.
• Completeness - Get started right away with more than 100 ready-to-use experiment descriptions for all disciplines (physics, chemistry, biology and natural sciences) in the pre-installed measureAPP.
• Presentation - A brilliant 10.1" display offers sufficient space for all applications as well as a detailed and pin sharp display.
• Extensibility - More than 40 additional sensors (Cobra SMARTsense and Cobra DigiCart) connectable via Bluetooth and USB.
• Versatility - The Android 15 operating system and the more than 3 million apps in the Google Play Store support you beyond experimenting.
• Endurance - The large battery with 10.000 mAh and quick charge function ensures your use throughout the whole (school) day.
• Connectivity - 5 integrated high-speed USB ports for lightning-fast measurements and connection of accessories such as cameras, USB sticks or hard drives.

Technical Specification

• Octa-Core (8-core) processor 2.2 GHz, 6 GB RAM (LPDDR4X)
• Internal memory 128 GB, expandable to 256 GB with microSD card
• 10.1 inch LCD touch screen (16:10), resolution 1,200 x 1,920 (WUXGA)
• Front camera 8 MP, main camera 16 MP
• Built-in loudspeaker, built-in microphone, 3.5 mm headphone jack
• Bluetooth 5.2, GPS, WiFi 5 a/b/g/n/ac
• 1 x USB type C to charge the device and for data communication e.g. via USB stick, PC
• 4 x USB 2.0 inputs for Cobra SMARTsense sensors, maximum data rate up to 100.000 Hz (100 kHz)
• Battery: 10.000 mAh
• Weight: 830 g

Internal sensors

• Temperature: 2 x thermocouple type K (incl. 2 Temperature probes )
  • Measuring range: -200...1200°C
  • Resolution: 0.1°C
  • Accuracy: +/- 3%
  • Data rate: 10 Hz
• Voltage: 1 x voltage connection 4 mm sockets
  • Measuring range: -30V…+30 V
  • Resolution: 20 mV
  • Accuracy: +/- 1%
  • Data rate: 100.000 Hz (100 kHz)
• Current: 1 x current connection 4 mm sockets
  • Measuring range: -1A…+1A
  • Resolution: 0.5 mA
  • Accuracy: +/- 1%
  • Data rate: 100.000 Hz (100 kHz)
• Light (built-in sensor)
  • Measuring range: 1-128 kLx
  • Resolution: 1 Lx
  • Accuracy: +/- 4 %
  • Data rate: 10 Hz
• Humidity (built-in sensor)
  • Measuring range: 0…100 %
  • Resolution: 0.1 %
  • Accuracy: +/- 4 % (bei 0-80 %)
  • Data rate: 10 Hz
• UV (built-in sensor)
  • Measuring range: 0…400 W/m²
  • Resolution: 0.1 W/m²
  • Accuracy: +/- 4 %
  • Data rate: 10 Hz
• Acceleration (on board)
