Technical data

Cobra DigiMotion Basis Set

Article no: 12975-77

Function and Applications

TheCobra DigiMotion Basic Set is an experimental kit for conducting 6 experiments on various topics in kinematics and dynamics. It is designed for use in middle and high school physics lessons and is intended for the study of two-dimensional plane motion. The set consists of an electromagnetic board and a signal source. It is based on the principle of electromagnetic positioning and allows continuous measurement of the signal source’s position at any time within the effective measurement area. Through high-frequency data acquisition, the trajectory of objects in two-dimensional motion can be displayed using the included free software. Velocity and acceleration can be calculated from the position data at any moment. Measurements are performed simultaneously with the visualization of motion phenomena, making physical laws clearly visible. The Basic Set can be upgraded to an Expert Set, allowing three additional experiments to be conducted.

Benefits

  • High measurement accuracy through electromagnetic positioning
  • Clear and illustrative presentation of physical laws through simultaneous measurement and visualization of motion phenomena
  • Calculation of velocity and acceleration via the included free software
  • Fast and stable data transmission via BLE Bluetooth
  • Minimal influence of environmental factors on measurement results

Technical Specification

  • Electromagnetic board:
    • Measurement area: 521 mm × 293 mm
    • Resolution: 0.012 mm
    • Accuracy: 1 mm
    • Communication distance: up to 50 m
    • Power supply: USB charging
    • Charging port: 4-pin magnetic suction interface
  • Signal source:
    • Electromagnetic position measurement within the effective area
    • Optimal measurement distance to the platform: 8 mm to 16 mm
    • Wireless data transmission via BLE Bluetooth
    • Battery: 3.7 V / 65 mAh lithium battery
    • Charging interface: USB Type-C
  • Accessories for conducting 9 experiments on the following topics:
    • Measuring gravitational acceleration with a simple pendulum
    • Damped vibrations
    • Horizontal projectile motion
    • Oblique projectile motion
    • Laws of free fall
    • Conservation of mechanical energy
  • The contents of the set are listed in the user manual.

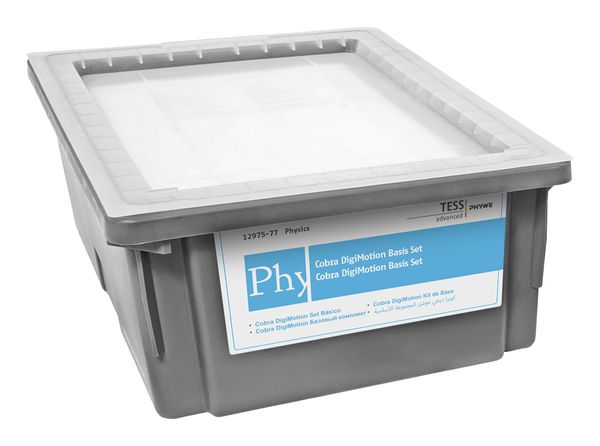

  • The set comes in a durable, stackable storage box with a custom-fit foam insert that protects the components and allows for quick inventory checks.
    Includes all essential components required to perform the experiments.

durable, stackable storage box with a custom-fit foam insert that protects the components and allows for quick inventory checks.
Includes all essential components required to perform the experiments.

n style="box-sizing: border-box; font-family: unit, sans-serif; font-size: 12pt; text-align: left; line-height: 18.4px; color: #535353; background-color: rgba(255, 255, 255, 1);">Includes all essential components required to perform the experiments.
