Technical data

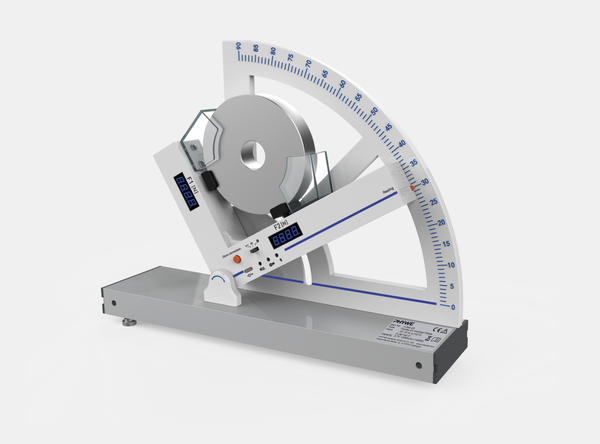

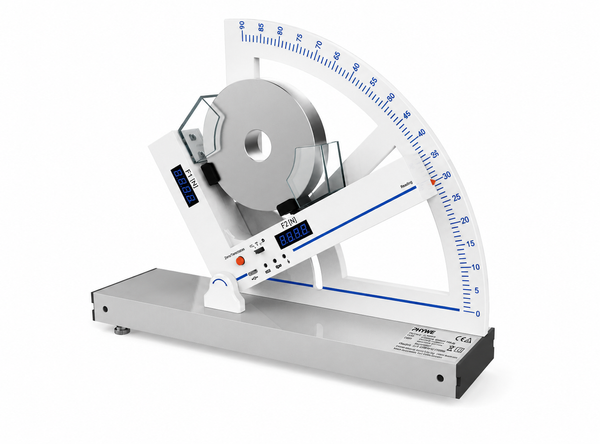

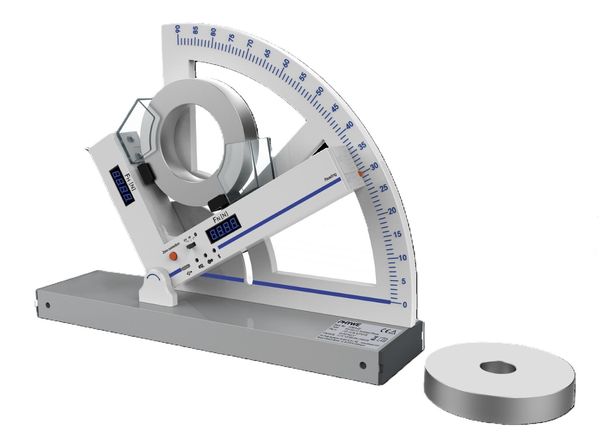

Cobra SMARTexperiment - Inclined plane

Article no: 11304-00
Function and Applications

The inclined plane makes it possible to clearly investigate the composition and decomposition of forces digitally using the PHYWElab app. With this experiment, you can analyze forces along different directions and verify the parallelogram rule. Ideal for classroom use or independent experimentation.

Benefits

  • All-in-one experiment – no time-consuming setup, no interface required
  • Includes all components and sensors necessary for measurement
  • Robust construction
  • Free measurement software measureAPP (iOS, Android, Windows 10)
  • Results in three steps:
    • Take it out of the cabinet
    • Switch on the device
    • Measure quickly and intuitively with a tablet

Equipment and Technical Data

  • Included sensors:
    • Force sensor
    • Angle sensor
  • Dimensions (mm): 350 x 250 x 80
  • Weight: approx. 1 kg
