Technical data

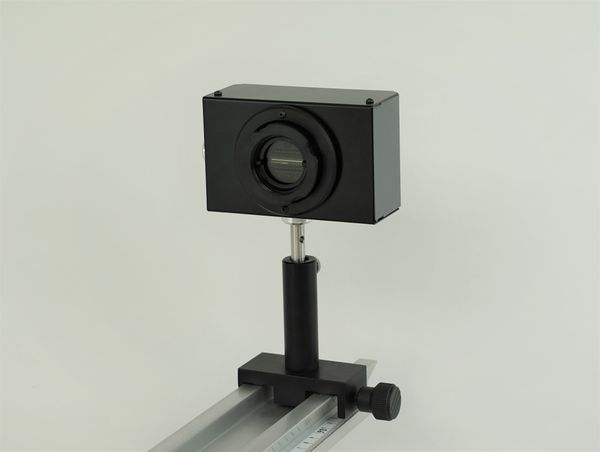

Digital array camera

Article no: 35612-99

Function and use

With this device, the light intensity received from the CCD sensor can be examined as a function of position (in pixels or mm) of time.



advantages

  • Immediate results
  • integrated assistants
  • easy-to-use features
  • Screw-on handle: horizontal and vertical alignment possible



Equipment and technical data

  • 3648 pixel sensor
  • Internal memory
  • Immediately filter function
  • High quality results through 16-bit dynamics
  • High signal stability
  • high resolution: 1 pixel / 0.8 micrometer over 30 mm
  • Housing: metal
  • Handle diameter: 10 mm
  • Handle length: 100 mm
  • Dimensions (mm): 83 x 128 x 63
