Technical data

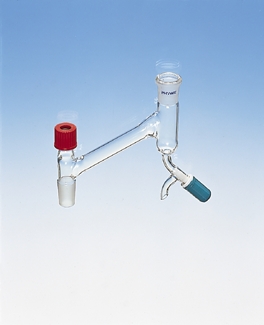

Column head, with stopcock, ST 19/26

Article no: 35919-01
Function and Applications

For connecting a distillation column to a condenser with determination of the separation performance at infinite (no condensate sampling) and finite (with condensate sampling) reflux ratio.

Benefits

  • Measuring column head vapour temperature
  • Transfer of vapour to a condenser
  • Reflux of the condensate to the column
  • Sampling of small quantities of condensate

Equipment and Technical Data

  • Standard ground cone and sleeve ST 19/26 for connection to column and condenser
  • Threaded connector GL 18/8 for thermometer
  • Tap with Teflon spindle for sampling of condensate
  • Length between cone and sleeve: 100 mm
  • Made of Duran® glass
