Technical data

Weight with hole

Article no: 02245-00
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

Function and Applications

Lifting weight, especially for experiments with 12 V motor (11610.00). For conversion of electric energy into mechanical hoisting work, conversion of potential energy to electric energy, for estimation of the efficiency during operation as a motor and as a generator.

Equipment and technical data

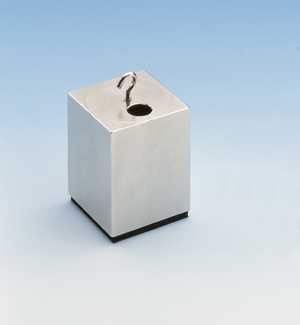

  • Rectangular block with nickel plated brass hook.
  • With hole to guide along a support rod (d = 10 mm).
  • Foam plate stuck to bottom surface to attenuate drops.
  • Mass: approx. 800 g.
  • Dimensions (mm): 45 × 45 × 57.
  • Hole diameter: 12 mm.
