Technical data

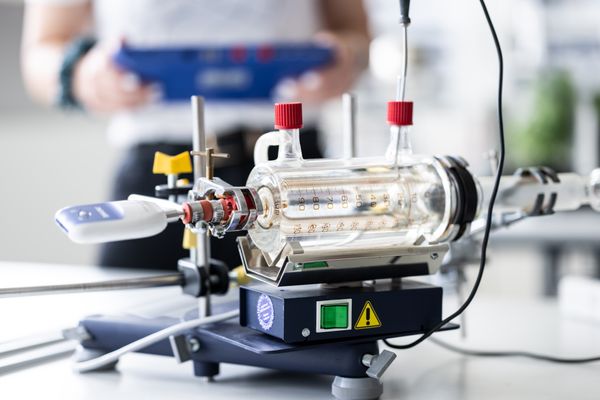

Set gas laws with glass jacket, 230 V

Article no: 43003-88
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Applications
With this set, experiments on the following topics can be carried out:

  • Gas law of Boyle-Mariotte
  • Gas law of Gay-Lussac
  • Gas law of Amonton (Charles)
  • Determination of molar masses according to the vapor density method

Benefits
This set allows to execute the measurements in a didactically clear and easily understandable way:

  • clear set-up
  • easy to understand
  • fast execution
  • short preparation time
  • completely mercury-free

Equipment and Technical Data
It will be delivered complete with tripod material and all necessary small hardware items:

  • Glass jacket
  • Gas syringe
  • Heater
  • Tripod material
  • Small hardware items

Not included are measuring instruments such as thermometers or manometers.



Scope of delivery

Tripod base, triangular, for 6 rods 02007-55 1
Stand rods, stainless steel, various sizes 02031-00 2
Boss head 02043-00 2
Universal clamp 37715-00 2
Glass jacket 02615-00 1
Gas syringe, 100 ml 02614-00 1
Nozzle for glass screwthread 43903-01 1
Rubber hose, various diameters 39282-00 1
Funnels (glass), Boro, various sizes 34459-00 1
Beakers, Boro, high form, various sizes 46027-00 1
Heating apparatus for glass jacket system 32246-93 1
Magnet, d = 10 mm, l = 200 mm 06311-00 1
Magnetic stirring bar 30 mm, cylindrical 46299-02 1
Base plate for support base DEMO 02007-01 1
