Technical data

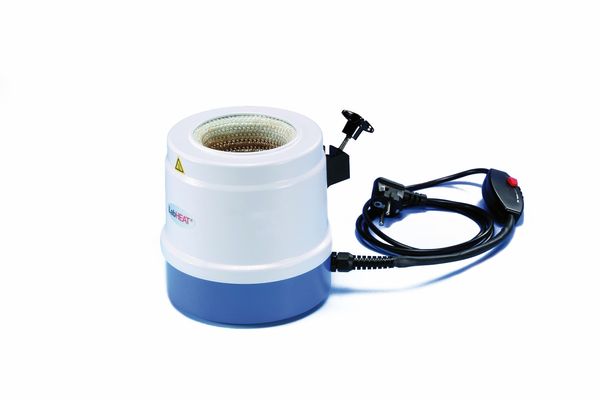

Heating mantle f. roundbottom flask, 250ml

Article no: 49542-93

Function and Applications
Heating mantle for round bottom flasks with a heating element which is laid out for a temperature up to a maximum of 450°C.

Benefits

  • The heating mantle is built-in into a plastic-coated metal case and lined with woven glass fiber cloth inside.
  • The case is to the outside thermally insulated against loss of heat and protection-grounded.
  • At the back two tapped holes are made in order to be able to attach a tripod (accessories).
  • The current supply occurs via a 1.5 m long power cable with earthed plug and a heating zone .
  • A personal security adapter which is stipulated to the is enclosed in the scope of delivery.
  • The heating mantle has two heating zones and a maximum power consumption of 150 W.

Equipment and technical data

  • for 250 ml round glas flasks
  • Temperature up to maximum of 450°C
  • two heating zones and a maximum power consumption of 150 W
  • personal security adapter
  • 230 V supply voltage
