Gas syringe, 100 ml

Function and Applications

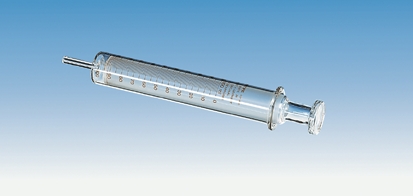

Gas syringe made of glass with ground-glass piston. It is used in combination with the glass jacket for the study of gas laws and for the determination of molar masses according to the vapor density method.

Benefits

• Designed as an insert for the glass jacket device system and therefore temperable.
• Glass cylinder with scale on both sides and movable piston.

Technical Specification

• With ground-glass piston
• With double-sided scale; scales marked ascending and descending:
  0 ... 100 ml and 100 ... 0 ml; graduation 1 ml
• Total length: 300 mm
• Length of glass cylinder: 205 mm
• Outer diameter of glass cylinder: 36 mm
• Length of connecting tube: 55 mm
• Outer diameter of glass tube: 8 mm
• It is recommended to use high vacuum grease (e.g. 31863-05) when performing experiments requiring high gas tightness.
