1-Channel Arbitr. Signal Generator ~ 1 μHz - 5 MHz ~ with TFT-Display

Function and Applications

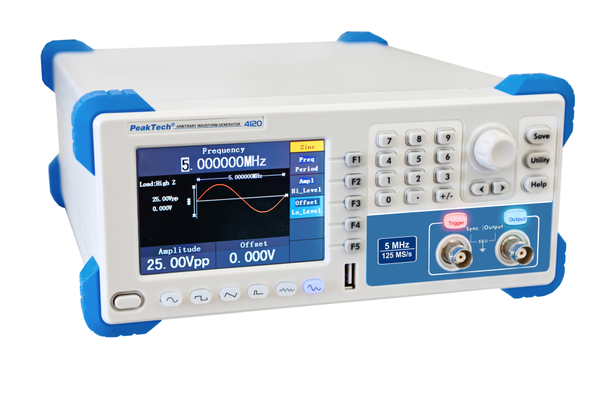

1CH Arbitrary Waveform Generator, 1 µHz – 5 MHz

This newly designed arbitrary waveform generator with advanced graphical user control has excellent technical properties and a high variety of functions. Of particular note here are the easily control via the various menu functions, a wide range of integrated waveforms and the excellent price/performance ratio. In this way this generator is perfect for almost all tasks in education, research and development.

Large 4“ high resolution color TFT-Display

New developed graphical user interface (GUI) with many functions

1uHz frequency resolution for whole bandwidth

High sampling rate of 125 MS/s

14-Bit vertical resolution

Integrated waveform editor (2 to 8.000 Points)

6 standard waveforms (Sinus, Square, Triangle, DC etc.)

45 arbitrary waveforms (Hamming, Gaussian, Trapezia, Tan etc.)

SCPI and LabView support

Software program for remote control and waveform edit

Safety: EN 61010

Accessories: Power cable, USB interface cable, Software for Windows, BNC-cable, Manual and SCPI protocol on CD
