Technical data

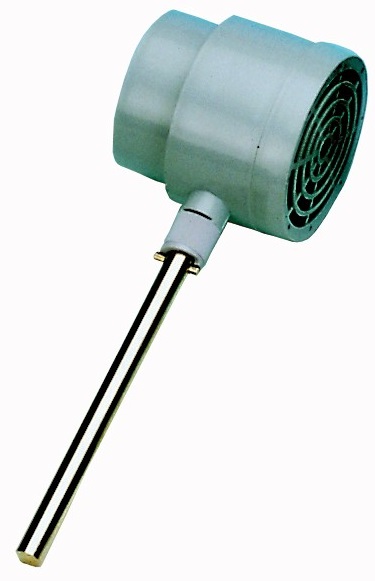

Loudspeaker / Sound head, 8 ohms

Article no: 03524-01

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

Function and Applications
To be used as sound emitters in conjunction with frequency generators (13650-93, 13652-93 or 13654-99) and as a receiver in combination with low-frequency amplifier (13625-93) or LF matching transformer (11753-01). The sound waves can be concentrated using a directional cylinder.

Equipment and technical data

permanent-dynamic system
Connection via two 4 mm sockets with connecting lines or via a BNC cable with adapter (07542-27)
Frequency response: 150 Hz .. 20 kHz
Rated power: 8 W
Impedance: 8 ohms
Housing diameter: 60 mm
Stem length: 145 mm
Stem diameter: 10 mm

Accessories

Directional cylinder (03525-00)

Recommended accessories

PHYWE Digital Function Generator, USB

13654-99
