Technical data

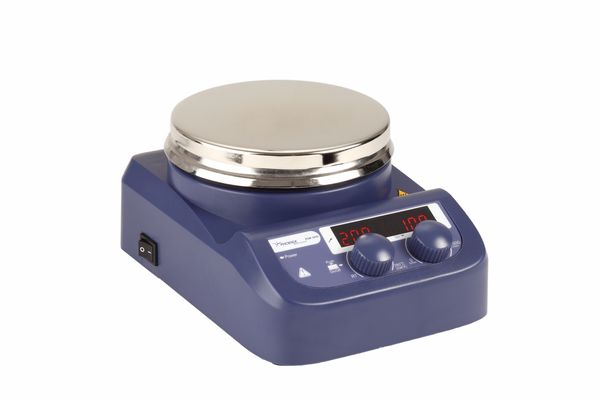

Magnetic stirrer with heating, stainless steel, digital, 280 °C, 100-1500 rpm

Article no: FHO-RSM10HS



Function and Applications

Cost-effective magnetic stirrer with heating, specially designed for use in science education. Many high-quality features such as parameter control via LED display, integrated temperature control and the closed housing design (IP42) are standard features of this attractive product series (Phönix RSM10).

Thanks to the integrated control function, the temperature of the stirred medium can be precisely regulated when a temperature sensor (PT-1000) is connected – all at very attractive prices.

Its robust construction ensures very low maintenance requirements and makes this magnetic stirrer suitable both for student experiments and for continuous operation in demonstration experiments.

Benefits

  • LED display for precise adjustment of speed and temperature
  • Digitally controlled speed and temperature
  • HOT warning indicator, even when the device is switched off
  • Connection for PT-1000
  • Integrated temperature control function
  • Threaded support for stand rod

Equipment and Technical Data

  • Voltage: 200–240 V
  • Max. stirring volume (H₂O): 3 l
  • Stirring bar: max. 50 mm
  • Stirring speed: 100 to 1500 rpm
  • Display accuracy: 10 rpm
  • Display: LED
  • Stirring plate: Ø 135 mm
  • Temperature range: RT to 280 °C
  • Setting accuracy: 1 °C
  • Control accuracy: ±2 °C
  • Temperature setting: digital
  • Heating power: 500 W
  • Dimensions (W × D × H): 155 × 215 × 100 mm
  • Weight: 1.5 kg
