Technical data

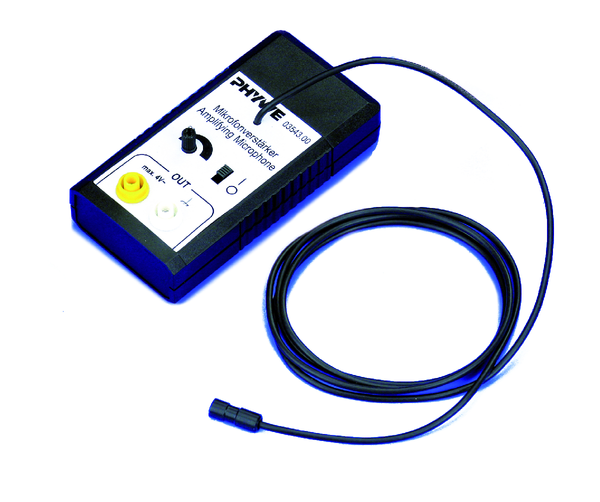

PHYWE Measuring microphone with amplifier

Article no: 03543-00
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

Function and Applications

Electret capsule with 1.5 m long cable suitable for special investigations, e.g. point shaped plotting of soundfields.

Equipment and Technical Data

  • Frequency range 30 Hz ... 20 kHz
  • Sensitivity 6.0 mV/Pa at 1 kHz
  • Gain 0 ... 1000 in phase with sound signal
  • Signal output 4V max. at 3 Ohm
  • Dimensions: (mm) 120 x 25 x 60
