Technical data

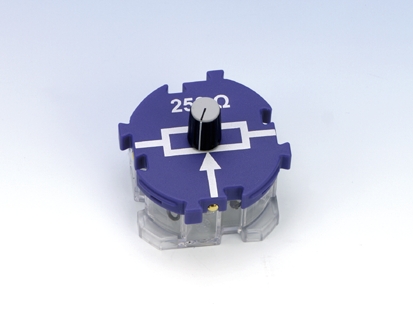

Potentiometer module 250 Ohm, SB

Article no: 05623-25

Function and Applications

Potentiometer module 250 Ohm for the construction of circuit diagrams by the students.

Equipment and technical data

  • Clearly recognizable circuit symbol on the respective module
  • Transparent base cap allows clear sight onto the real components
  • Secure contacting due to gold-plated, laterally rounded brass contacts
  • Puzzle-like connection of the modules
  • Line width on the blocks: 2.5 mm
  • Diameter of the contact area: 2 mm
  • Size (mm): 55 x 55 x 30
  • Resistance of a contact: 0.02 Ohm
  • Max. current: 2 A
  • Max. voltage: 12 V
