Technical data

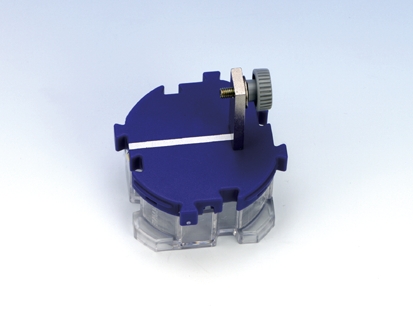

Universal holder module, SB

Article no: 05603-00

Function and Applications

Universal holder module for the construction of circuit diagrams by the students. Nickel-plated metal web (12mm x 32mm) with knurled screw for fastening wires, metal springs or bimetallic strips. Electrical connection via contact of the module.

Equipment and technical data

  • Clearly recognizable circuit symbol on the respective module
  • Transparent base cap allows clear sight onto the real components
  • Secure contacting due to gold-plated, laterally rounded brass contacts
  • Puzzle-like connection of the modules
  • Line width on the blocks: 2.5 mm
  • Diameter of the contact area: 2 mm
  • Size (mm): 55 x 55 x 30
  • Resistance of a contact: 0.02 Ohm
  • Max. current: 2 A
  • Max. voltage: 12 V
