Technical data

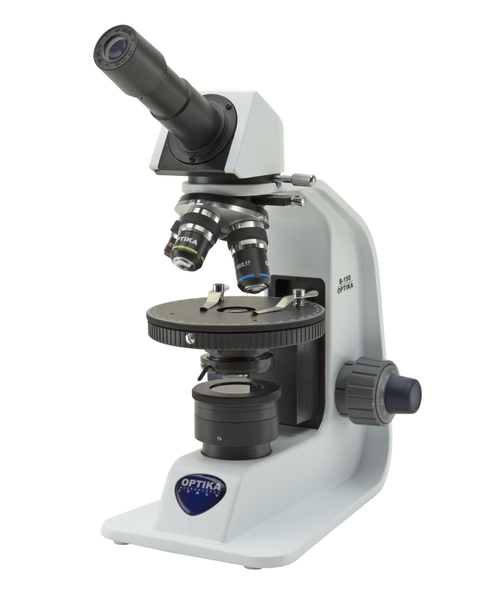

OPTIKA Monocular Polarizing Microscope B-150P-MRPL

Article no: OPT-B-150P-MRPL

Function and Applications

Monocular polarizing microscope with rechargeable battery for very long outdoor operation up to 15 hours. Equipped with rotatable stage and efficient X-LED1 illumination. With N-PLAN objectives.

Observation mode: Brightfield, Polarized Light.

Head: Monocular, 30° inclined; 360° rotating.

Eyepiece: High-Point WF10x/18 mm, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece.

Objectives:

- N-PLAN 4x/0.10, with anti-fungus treatment

- N-PLAN 10x/0.25 , with anti-fungus treatment

- N-PLAN 40x/0.65 , with anti-fungus treatment

Specimen stage: Rotatable round stage, 120 mm diameter.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED1 with white 1 W LED and light intensity control.

Color temperature: 6,300 K. Li-Ion battery for long lasting operation.

Multi-plug 100-240Vac/5Vdc external power supply.

Polarizing filters: Rotating Polarizer (swing-out) and fixed Analyzer (sliding-out).
