Technical data

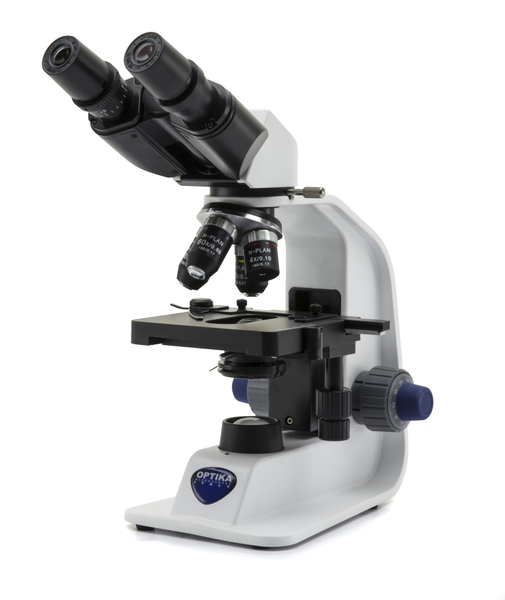

OPTIKA Binocular Microscope B-157R-PL

Article no: OPT-B-157R-PL

Function and Applications

Advanced binocular model with 600x total magnification, and precise and accurate positioning of the slide thanks to smooth movement of the mechanical stage. With efficient X-LED1 illumination. With N-PLAN objectives and with rechargeable battery for very long outdoor operation of up to 15 hours.

Equipment and Technical Data

  • Observation mode: Brightfield
  • Head: Binocular, 30° inclined; 360° rotating
  • Eyepieces: High-Point WF10x/18 mm, secured by screw
  • Nosepiece: Quadruple ball bearings revolving nosepiece
  • Objectives: N-PLAN 4x/0.10, N-PLAN 10x/0.25, N-PLAN 40x/0.65, N-PLAN 60x/0.85 , all with anti-fungus treatment
  • Specimen stage: Mechanical stage, 125x116mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm
  • Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob
  • Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm
  • Illumination: X-LED1 with white 1 W LED and light intensity control
  • Color temperature: 6,300 K. Li-Ion battery for long lasting operation
  • Multi-plug 100-240Vac/5Vdc external power supply
  • Dimensions: 35 x 17 x 32 cm
  • Weight: 4 kg
