Technical data

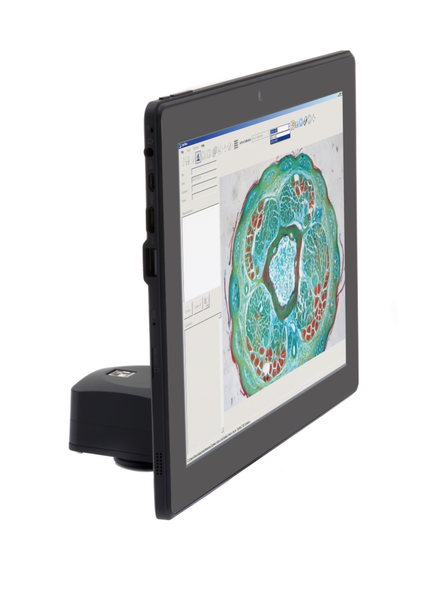

OPTIKA Windows-Tablet PC with built-in 3.1 Mp Digital Camera

Article no: OPT-TB-3W
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> Unknown

Function and Applications

Windows tablet PC with large 10.1" LCD touch screen, combined with a 3.1 MP camera to create the most advanced solution for digital microscopy.

TABLET TECHNICAL SPECIFICATIONS

Model: Tablet 10.8"

Operating System: Windows 10 32-bit

Language: Multilanguages already installed

Image capturing software: OPTIKA Vision lite

CPU: Intel® Atom™ Z3735F, Quad core

CPU speed: 1.44 GHz

Graphics Card: Intel® HD Graphics 3D Accelerator

Memory: Ram 2,048 GB DDR3L

LCD display: LED 10.1" IPS Multi Touch Screen

LCD resolution 1920 x 1280, 16/10 (WXGA)

Storage : HDD 64GB

Network: Wireless, Bluetooth 4.0

Input/output ports: Micro USB-B - USB - Microphone - MicroSD card reader - Mini HDMI - Head-phone

Control Buttons: Auto rotate off, volume control

Battery Technology: Lithium-ion battery, 2x cell

Battery capacity: 8400 mAh

Max load: 15 W

Dimensions & Weight: Thickness 10,5 mm, Height 17,4 cm, Width 25,7 cm, Weight: 720 g

CAMERA TECHNICAL SPECIFICATIONS

Digital camera resolution: 3.1 MP (2048 x 1536)

Signal output: USB 2.0

Sensor Size: 1/2"

Sensor technology: CMOS

Sensor type: Aptina CMOS

Image format: 4/3

Pixel size: 3.2 x 3.2 µm

Frame rate full resolution: 12 fps (2048 x 1536)

Frame rate other resolutions: 45 fps (680 x 510)

Sensitivity: 1 V/lux-second

Signal / noise ratio: 43 dB

Dynamic range: 61 dB

ADC conversion: 8 Bit

Color Depth: 1 Bit ; 4 Bit; 8 Bit; 24 Bit

Exposure Time: 0.244 msec - 2 sec

Binning 1x1; 2x2; 3x3

IR filter 380-650 nm (IR-cut filter)

Camera power PC USB

C-mount: YES
