Technical data

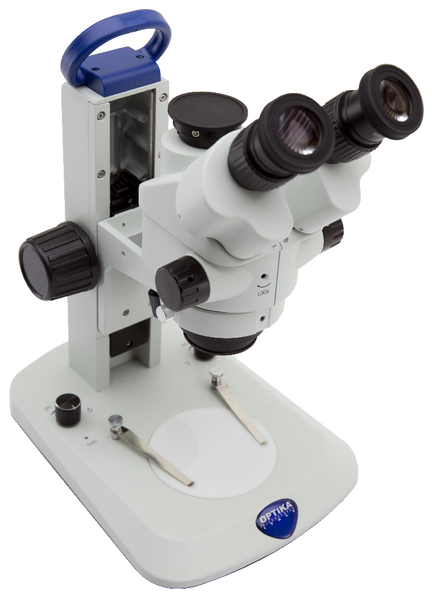

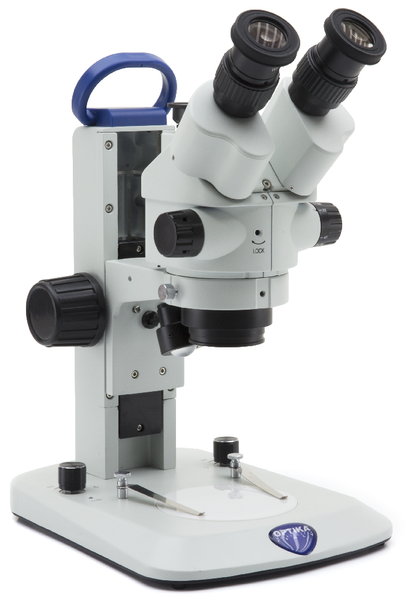

OPTIKA Trinocular stereo microscope SLX-3, 7x...45x

Article no: OPT-SLX-3

Function and Applications

Trinocular stereo microscope with zoom 7x to 45x

Equipment and Technical Data

  • Head: Trinocular (split ratio: 50/50), 45° inclined; 360° rotating
  • Dioptric adjustment: Both eyepieces
  • Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups
  • Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment
  • Working distance: 100 mm
  • Stand: High-grade, precision fixed with handle and focus
  • Focusing: Rack and pinion focusing mechanism
  • Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries, color temperature: 6,300 K
  • Multi-plug 100-240VAC, 50/60Hz / 5VDC external power supply





Necessary accessories

0,35x C-Mount camera adapter für OPTIKA-Mikroskope OPT-M-620
0,5x C-Mount camera adapter für OPTIKA-Mikroskope OPT-M-620-1
0,65x C-Mount camera adapter für OPTIKA-Mikroskope OPT-M-620-2
1x C-Mount camera adapter für OPTIKA-Mikroskope OPT-M-620-3
