Technical data

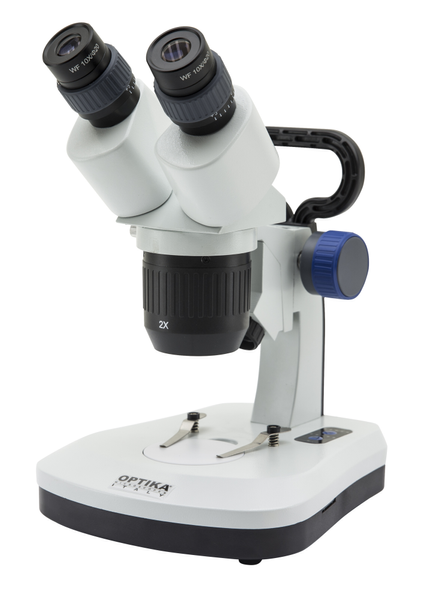

OPTIKA Binocular Stereomicroscope SFX-51, 20x/40x

Article no: OPT-SFX-51
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Applications

Binocular stereomicroscope equipped with turnable objective (2x-4x), 360° rotating head, fixed arm with handle, and incredibly bright and led uniform illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

Equipment and Technical Data

  • Head: Binocular head, 45° inclined, 360° rotating
  • Interpupillary distance: adjustable
  • Dioptric adjustment: on both eyepieces
  • Eyepieces: WF 10x/20 mm, secured by screw
  • Objective: Achromatic 2x-4x with anti-fungus treatment
  • Working distance: 76 mm
  • Stand: Fixed stand with focus and handle
  • Focusing: Rack and pinion controlled by a pair of knobs placed on both sides of the stand
  • Illumination: Incident: 1W LED, transmitted: 1W LED. Touch brightness control. With rechargeable batteries
  • Multi-plug 100-240Vac/6Vdc external power supply
  • Color temperature: 6,300 K
