Technical data

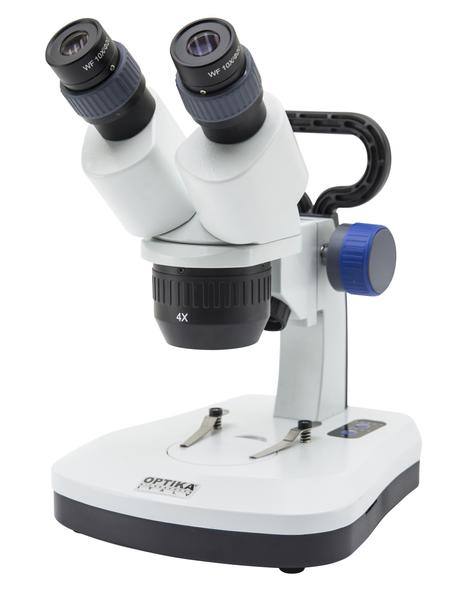

OPTIKA Stereo microscope SFX-33, 20x/40x

Article no: OPT-SFX-33
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Applications

Binocular stereomicroscope with 20x/40x magnification equipped with turnable objective (2x-4x), fixed arm with handle, and incredibly bright and uniform LED illumination (transmitted and incident), settable through the exclusive touch control. Powered by rechargeable batteries.

Equipment and Technical Data

  • Head: Binocular head, 45° inclined
  • Interpupillary distance: Adjustable
  • Dioptric adjustment: On both eyepieces
  • Eyepieces: WF 10x/20 mm, secured by screw
  • Objective: Achromatic 2x-4x with anti-fungus treatment
  • Stand: Fixed stand with focus and handle
  • Working distance: 57 mm
  • Focusing: Rack and pinion controlled by a pair of knobs placed on both sides of the stand
  • Illumination: Incident: 1 W LED, transmitted: 1 W LED, color temperature: 6,300 K
  • Touch brightness control
  • With rechargeable batteries
  • Multi-plug 100-240VAC/6VDC external power supply.
  • Dimensions: 29 x 18 x 21 cm
  • Weight: 1.8 kg
