Technical data

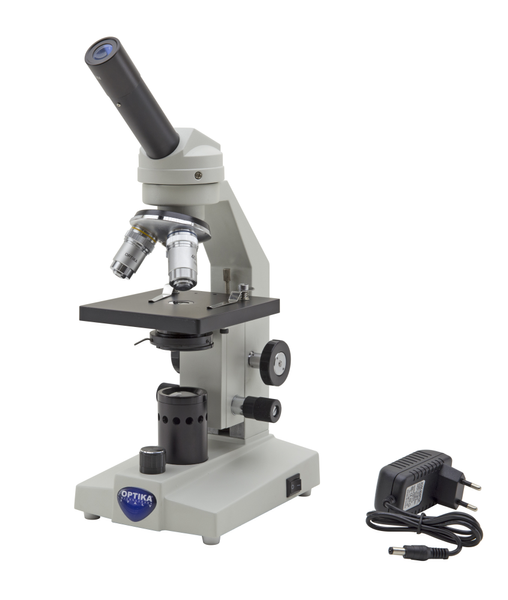

OPTIKA Monocular Microscope M-100FLed

Article no: OPT-M-100FLED

Function and Applications

Classic monocular microscope equipped with efficient LED illumination and internal rechargeable batteries which provides up to 8 hours of outdoor use.

Equipment and Technical  Data

Observation mode: Brightfield.

Head: Monocular, 45° inclined; 360° rotating.

Eyepiece: WF10x/18 mm, secured by screw.

Nosepiece: Triple ball bearings revolving nosepiece.

Objectives:

- Achromatic 4x/0.10, with anti-fungus treatment

- Achromatic 10x/0.25, with anti-fungus treatment

- Achromatic 40x/0.65, with anti-fungus treatment

Specimen stage: Fixed stage, 120x110 mm. With sample clips.

Focusing: Separate coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: N.A. 0.65 with iris diaphragm.

Illumination: 0.5 W LED, with light intensity control, rechargeable batteries.Color temperature: 6,300 K. 100-240Vac/12Vdc external power supply.
