Technical data

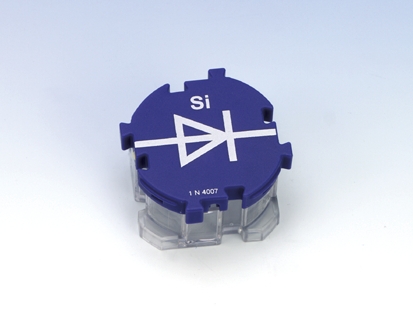

Silicon-diode module 1N4007, SB

Article no: 05651-00

Function and Applications

Silicon-diode module for the construction of circuit diagrams by the students.

Equipment and technical data

  • Clearly recognizable circuit symbol on the respective module
  • Transparent base cap allows clear sight onto the real components
  • Secure contacting due to gold-plated, laterally rounded brass contacts
  • Puzzle-like connection of the modules
  • Line width on the blocks: 2.5 mm
  • Diameter of the contact area: 2 mm
  • Size (mm): 55 x 55 x 30
  • Resistance of a contact: 0.02 Ohm
  • Max. current: 2 A
  • Max. voltage: 12 V
  • Forward voltage: ≤ 1.1 V
  • Forward current: ≤ 1A
  • Reverse Voltage: ≤ 1000 V
  • Reverse current: ≤ 5 µA
  • Power: 3 W
