Technical data

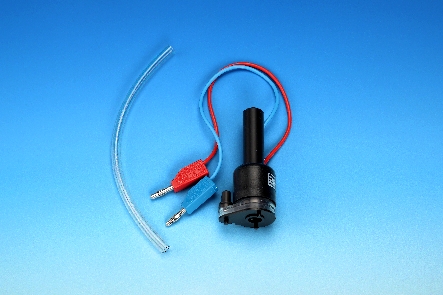

Water pump/ water turbine/ generator

Article no: 05753-00
Function and Applications

To investigate the principle and operation of water power plants. Engine to perform student experiments in the field of conversion of energy from water power as well as storage of energy from wind or solar in potential energy of water.

Benefits

  • Easy experimentation due to compact design
  •  standard 4mm connector plugs
  • compatibility to other components in the field of renewable energy

Equipment and Technical Data

  • Pump:
    • operating voltage: 1.5-2.5V
    • max. flow rate: 13l/h
    • water height:: 10cm at 2.5V
  • Turbine/Generator:
    • Power >10mW
  • cable length: 50cm
  • 4mm connector plugs
  • Height: 90mm
  • max. diameter: 35mm

Recommended accessories

clamp, d = 16 mm, with mounting rod 05764-00
