Technical data

Mass and weight

Article no: P1251600

Principle

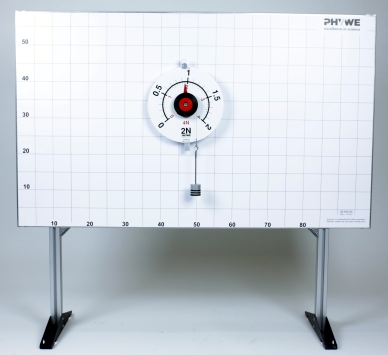

With the aid of a spring dynamometer, demonstrate that the weight of a body is proportional to its mass.

Benefits

Optimised for demonstration experiments: Transformation from horizontal into vertical direction
Very good visibility: Big devices on uniform background
Strong Magnets (at least 10 N) allow a safe mounting and therefore a very easy handling
Demonstrative measurement of forces with large circular dynamometers with a fixing magnet and ball-bearing pulley with two cord grooves for two measuring ranges

Scope of delivery

PHYWE Demo Physics board with stand	02150-00	1
Torsion dynamometer	03069-03	1
Weight holder, 10 g	02204-01	1
Slotted weight, silver bronze, 10 g	02205-03	2
Slotted weight, silver bronze, 10 g	02205-03	2
Slotted weight, silver bronze, 50 g	02206-03	1
Slotted weight, silver bronze, 50 g	02206-03	2
G-clamp	02014-01	2
