Technical data


Pumping water using solar energy

Article no: P9518100

Principle

So-called hydro-electric power stations have large water reservoirs up high that store water prior to use. The water is pumped up to them from coal-burning power stations or nuclear power stations etc. using electric energy. Waste products such as CO2 gas or radioactive material are hereby generated. This experiment shows that this could be a possible application for renewable energy.

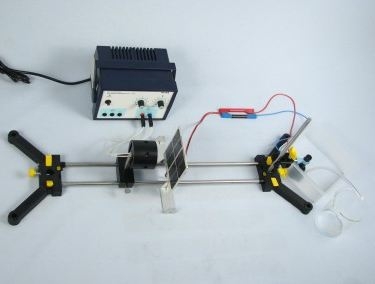

A pump that is driven by electric energy supplied by a solar battery is used in this experiment. The effect of the light intensity on the pump performance is to be examined.

Benefits

  • Experiment is part of a complete solution set with a total of 26 experiments for Renewable Energy solar cells, wind power, water power
  • Safe experimentation: the lamp is protected against touch, the housing is well ventilated with the aid of holes and is only slightly heated
  • The power supply used is versatile and is particularly suitable for pupil tests for all ages

Tasks

How high can water be pumped by light?

Scope of delivery

Support base, variable 02001-00 1
Beakers, Boro, low form, various sizes 46055-00 1
Beaker, 100 ml, plastic (PP) 36011-01 1
Stand rods, stainless steel, various sizes 02037-00 2
Double sockets,1 pair,red a.black 07264-00 2
Slide mount for optical bench 09822-00 1
Solar battery, 4 cells, with cable and connectors 06752-22 1
Halogen lamp with reflector, 12V / 20W 05780-00 1
Mount for halogen lamp with reflector 05781-00 1
Holder for solar cell 3.3 x 6.5 cm, with plugs 06752-08 2
Measuring tape, l = 2 m 09936-00 1
Water pump/ water turbine/ generator 05753-00 1
Boss head 02043-00 1
clamp, d = 16 mm, with mounting rod 05764-00 1
Dish, plastic, 150x150x65 mm 33928-00 1
Stand rods, stainless steel, various sizes 02031-00 1
PHYWE Power supply, 230 V, DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A 13506-93 1
