Diodes as electrical valves

Article no: P1373700

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

Principle

The students should recognise that a diode acts as an electrical valve. The teacher has to decide, according to the situation, whether an explanation is to be given for this action with the help of a model of the electrical processes within the components, or if this action is merely to be established.

Benefits

No additional cable connections between the building blocks needed - clear arragned and quick setup
Contact saftey due to puzzle blocks system
Corrosion-free gold plated contacts
Doubled earning sucess: Electric circuit diagram on top, real components can be seen unterside

Tasks

How does a diode function in a direct current circuit?

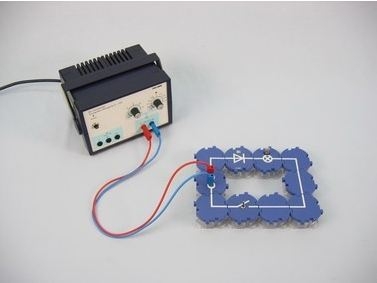

Investigate what happens when a diode is connected in series with a filament lamp in a direct current circuit.

Scope of delivery

Straight connector module, SB	05601-01	2
Angled connector module, SB	05601-02	4
Interrupted connector module with sockets, SB	05601-04	2
On-off switch module, SB	05602-01	1
Socket module for incandescent lamp E10, SB	05604-00	1
Silicon-diode module 1N4007, SB	05651-00	1
Connecting cable, 32 A, red, various lengths	07360-01	1
Connecting cable, 32 A, blue, various lengths	07360-04	1
Connecting cable, 32 A, red, various lengths	07361-01	1
Connecting cable, 32 A, blue, various lengths	07361-04	1
Filament lamps 12V/0.1A, E10, 10 pieces	07505-03	1
PHYWE Analog multimeter, 600V AC/DC, 10A AC/DC, 2 MΩ, overload protection	07021-11	1
PHYWE Power supply, 230 V,DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A	13506-93	1
