Technical data

Angular oscillation apparatus

Article no: 02415-88

Function and Applications

Apparatus for the investigationof moment of inertia. for qualitative illustration of relationshipbetween mass distribution and moment of inertia, as well as for quantitative determination of moments of inertia of various models. In addition, the validity of the "Steiner law" can be varified experimentally.

Benefits

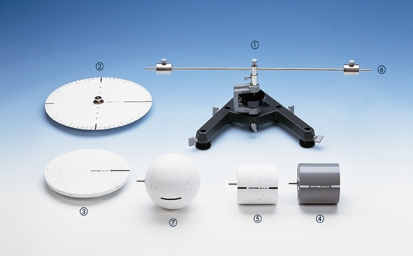

Consists of:

Rotation axis with spring,
Metal- and Styrofoam disk,
Full material and hollow cylinder
Sphere and bar with adjustablemass pieces

A support foot is needed. E.g. Phywe tripod base 02002-55.

Scope of delivery

Rotation axle	02415-01	1
Sphere	02415-02	1
Disk	02415-03	1
Hollow cylinder	02415-04	1
Solid cylinder	02415-05	1
Rod with movable masses	02415-06	1
Disk, w. diametrical holes	02415-07	1
