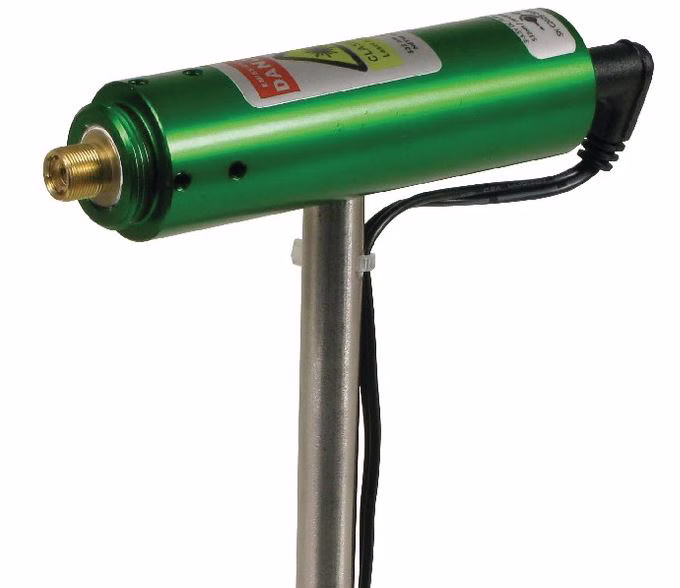

Diode pumped solid state laser, 1 mW, 532 nm (green) with short handle, l = 75 mm

Function and Applications

Diode-pumped, frequency-doubled YAG solid-state laser.

Benefits

• Compact monochromatic light source approved for schools, especially suitable for interference and diffraction experiments
• Since the human eye is particularly sensitive to green light, this laser is preferable to a red laser of the same power
• The laser meets the DIN safety requirements of laser protection class 2

Technical Specification

• Wavelength: 532 nm, non-polarized
• Output power: 1 mW
• Beam diameter (at output): 0.5 mm
• Divergence: 1.2 mRad
• Operating temperature: 15…25 °C
• Supply voltage: 3…3.3 V DC
• Connection for accessories (e.g. beam expander): M20 external thread
• Includes plug-in power supply
• Mounting rod (length 75 mm; diameter 10 mm)
