Function and Applications

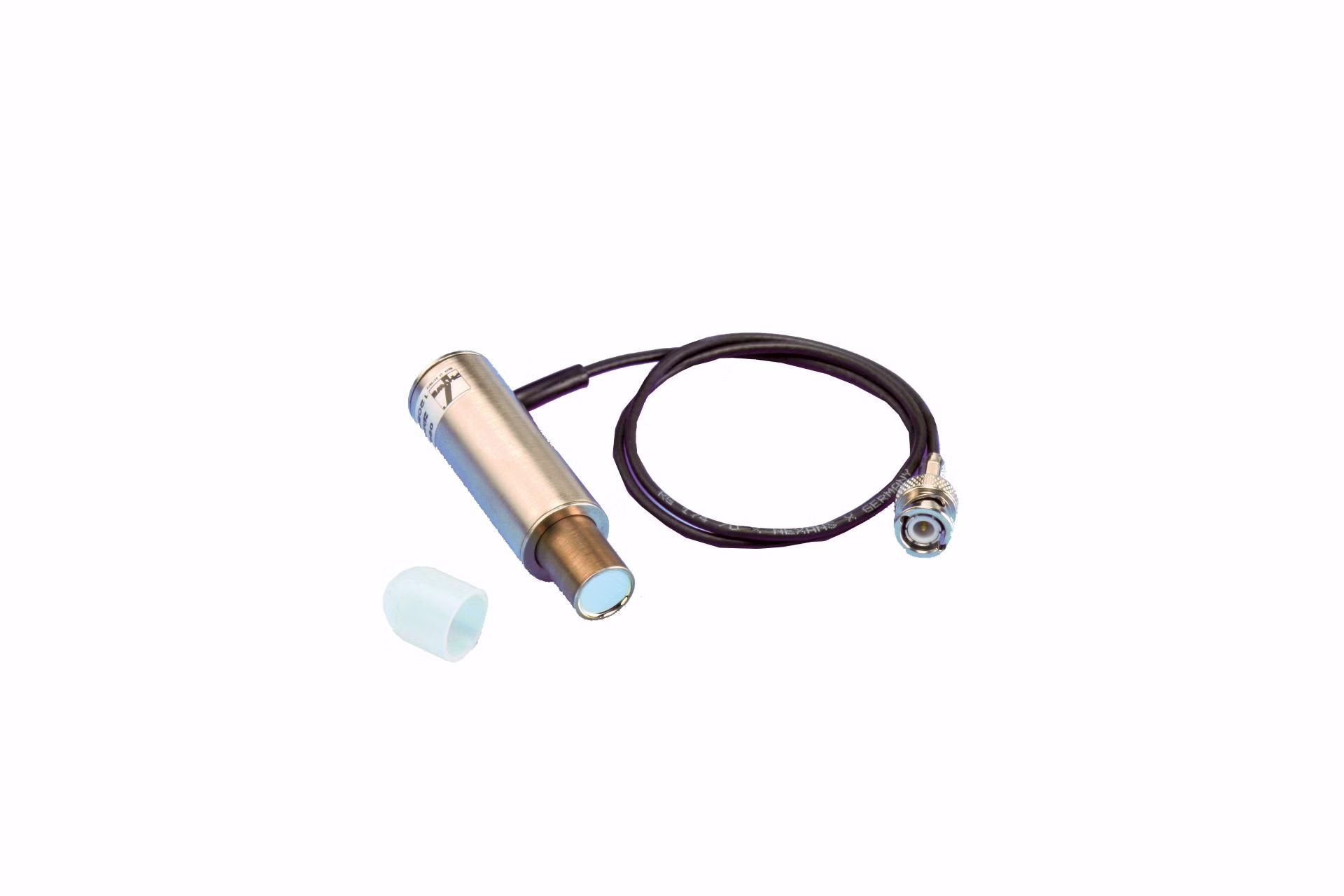

Self-quenching halogen Geiger-Müller tube for detecting alpha, beta, and gamma radiation.
Benefits
- Mounted in a metal cylinder with fixed 500 mm coaxial cable and BNC connector
- Includes protective cap
Technical Specification
- Mass density of mica window: 2…3 mg/cm²
- Operating voltage: 500 V
- Plateau length: 200 V
- Plateau slope: 0.04 %/V
- Dead time: approx. 100 µs
- Background count: approx. 15 counts/min
- Housing diameter: 22 mm
- Tube diameter: 15 mm
- Tube length: 76 mm
- Weight: 103 g
