Reflection by a concave mirror

Article no: P1063900

Principle

This is a particularly important experiment in our series of experiments dealing with the reflection of light because it reinforces the students' knowledge of the laws of reflection by a plane mirror and applies it to other situations. The first part of the experiment stresses the observation of the path of parallel incident light beams which are reflected by a concave mirror and, in this context, the introduction of the term "focal point".

In the second part of the experiment, the paths of three selected light beams are experimentally determined and thus form the general prerequisite for the understanding of image formation which is to be covered later.
The second part of the experiment is thus more demanding on the abilities and experimental proficiency of the students. The two experiments can be seen as a unit. However, each of it can be performed separately; and in the interest of careful performance and development of experimental proficiency we recommend to do that.

Alternatively we can recommend an approach where each group of students investigates the path of a different selected beam of light; these results can then be pooled at the end of the experiment.

Benefits

  • Multifunctional light box - All-in-one: Can be used for geometric optics on the table, colour mixing and on an optical bench
  • Extension with others sets at anytime, no additional light sources needed, recognition value for students

Tasks

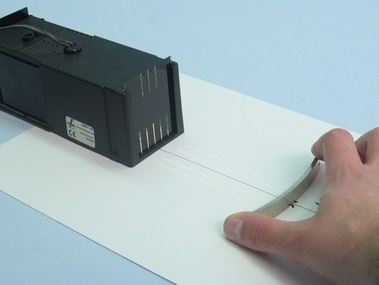

How is light reflected by a concave mirror? Investigate how light is reflected by a concave mirror and determine the path of selected light beams which are reflected by a concave mirror.

Scope of delivery

Light box, halogen 12V/20 W 09801-00 1
Mirror, concave-convex 09812-00 1
PHYWE Power supply, 230 V, DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A 13506-93 1
