Magnetic flux density of a coil in dependence of the current with Cobra SMARTsense  ![]()
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
Unknown Principle Coils are built into many electronic objects. They are installed, for example, in transformers, electric motors or loudspeakers. Coils only generate a magnetic field when they are connected to a power source. Benefits - Especially understandable and didactically prepared description of the experiment (relevance to everyday life, etc.) including protocol questions.
- Future-oriented teaching: Integration into digital science lessons with tablets or smartphones.
- Increased motivation of students by using the intuitive measureAPP.
- Increased media competence.

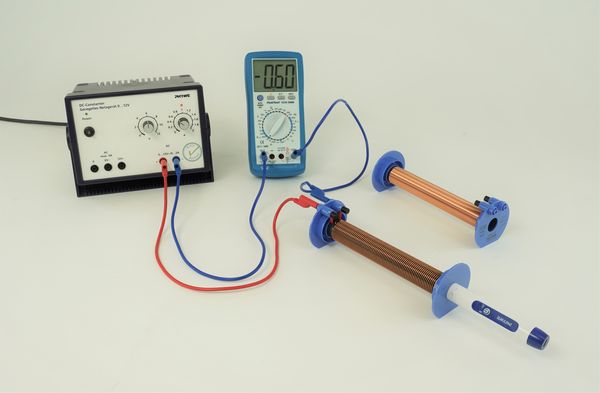

Tasks - measuring the magnetic flux density within the 26mm Ø coil with a winding of 75 with increasing current intensity.
- measuring the magnetic flux density inside the 26mm Ø coil with a turn of 300 with increasing current.
Learning Objectives In this experiment the magnetic flux density as a function of the current intensity is to be investigated. Two coils with different winding density are used and compared. Scope of delivery |
Cobra SMARTsense 3-Axis Magnetic field - Sensor for measuring the magnetic field in 3 axes ±130 mT / ±5 mT (Bluetooth + USB)
|
12947-00
|
1
| |
Induction coil,300 turns,dia.25mm
|
11007-03
|
1
| |
Induction coil, 75 turns,dia.25mm
|
11007-07
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07361-01
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07361-04
|
2
| |
PHYWE Digital multimeter, 600V AC/DC, 10A AC/DC, 20 MΩ, 200 µF, 20 kHz, −20°C…760°C
|
07122-00
|
1
| |
measureAPP - the free measurement software for all devices and operating systems
|
14581-61
|
1
| |
PHYWE Power supply, 230 V,DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A
|
13506-93
|
1
|
|
