The shunt motor (DEMO)

Article no: P1433505

Principle

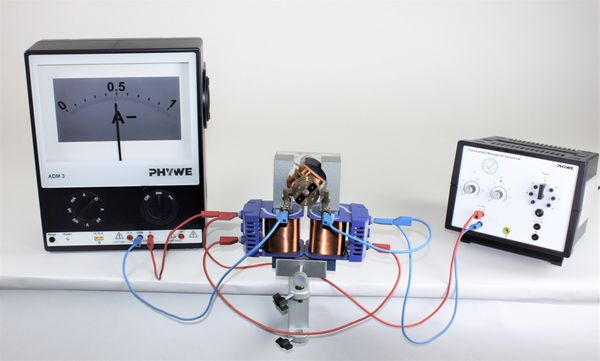

An electromotor can also be operated with an electromagnet as a field magnet. If armature coils are connected parallel to the field coils, then this is called a shunt-wound motor. The properties of this motor are studied by observing the direction of rotation and measuring the electric current.

Benefits

  • Demonstrative experiment due to large instruments
  • Easy and sturdy setup

Scope of delivery

Bench clamp 02012-00 1
Plate holder, opening width 2 - 35 mm 06509-00 1
Iron core, U-shaped, laminated 06501-00 1
Coil, 1200 turns 06515-01 2
Motor set 06550-00 1
Rotor coil, Double-T armature 06554-00 1
Cord pulley 06558-01 1
Connecting cable, 32 A, red, various lengths 07362-01 3
Connecting cable, 32 A, blue, various lengths 07362-04 3
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature 13840-00 1
PHYWE Power supply, universal, analog display DC: 18 V, 5 A / AC: 15 V, 5 A 13503-93 1
