Technical data

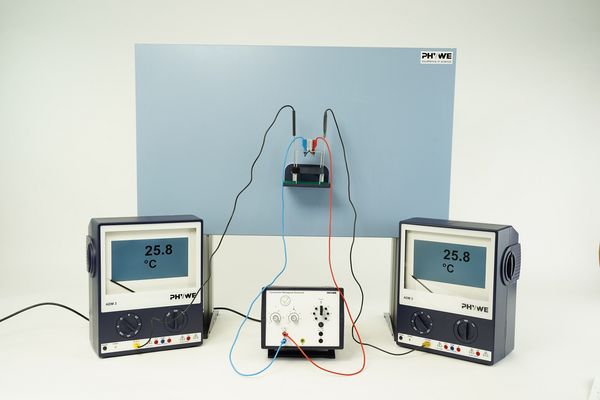

The Peltier effect with ADM3

Article no: P9507100

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

Principle

A Peltier element and a thermogenerator are similar in design, but they are used for different purposes. The Peltier element consists of a block with many thermocouples, which are electrically connected in series and thermally in parallel, so that their thermoelectric voltages add up. If one side of a thermocouple is colder than the other, an electrical voltage is generated. If a voltage is applied in reverse, a current flows through the element and a temperature difference is created: one side becomes colder, the other warmer. This effect is called Peltier effect.

Benefits

Part of a system solution - easily expandable for further experiments
Simple teaching by using the demo board physics
Clear test execution by using ADM3 multimeters

Learning objectives

Students learn how a thermocouple works.
The students observe the conversion of electrical energy into thermal energy.

Scope of delivery

Thermogenerator, Peltier element	04374-00	1
Heat insulating sheet, felt, 100 mm x 135 mm	04375-00	1
Apparatus carrier w. fix. magnet	45525-00	1
Beakers, Boro, low form, various sizes	46055-00	2
Magnetic board with stand	02150-00	1
Immersion probe NiCr-Ni, steel, -50...400 °C	13615-03	2
Connecting cable, 32 A, red, various lengths	07362-01	1
Connecting cable, 32 A, blue, various lengths	07362-04	1
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature	13840-00	2
G-clamp	02014-01	2
PHYWE Power supply, universal, analog display DC: 18 V, 5 A / AC: 15 V, 5 A	13503-93	1
