Technical data


DEMO advanced Physics Electromagnetism 1

Article no: 25573-88

Function and Applications


Equipment set for performing at least 7 demonstration experiments on the topics:

Electromagnetic ...

  • Engines (3 experiments)
  • Induction (1 experiments)
  • Generators (3 experiments)



Benefits



  • Didactically valuable build-up motor set
  • Minimal preparation time
  • 3 different rotors
  • Shock-proof plastic housing with marked winding direction and safety sockets

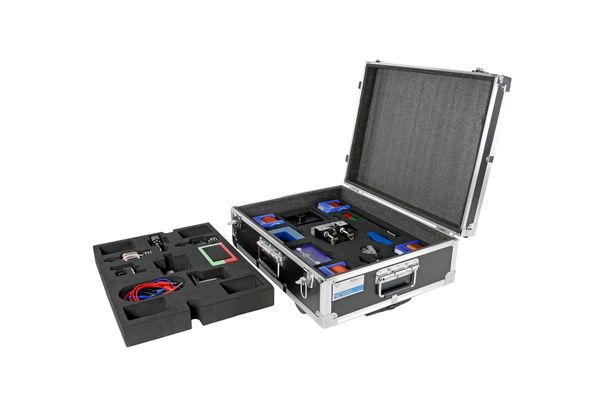

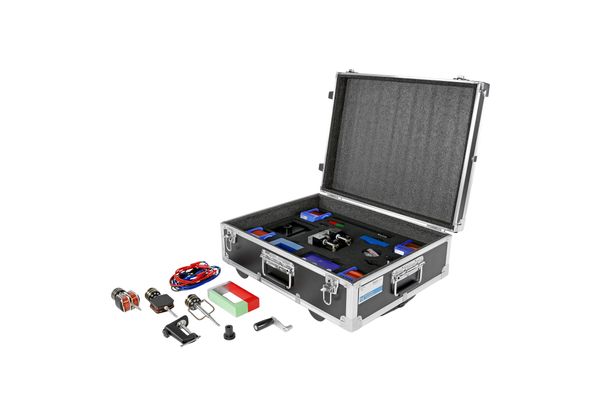

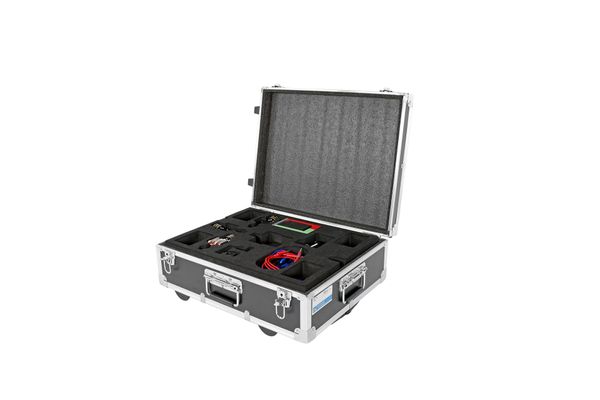

  • The equipment is stored in a robust aluminum case with a removable lid
  • Foam insert: quick control for completeness and safe transport
  • Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes



Equipment and Technical Data



  • Power supplies and measuring devices are required to carry out the listed experiments

Scope of delivery

Motor set 06550-00 1
Rotor coil, Double-T armature 06554-00 1
Rotor coil,10 turns 06552-00 1
Rotor coil,1 turn 06551-00 1
Coil, 1200 turns 06515-01 2
Coil, 300 turns 06513-01 2
U-magnet, large, U-shaped, limb length 130 mm, colored poles 06320-00 1
Clamping device for iron cores 06506-00 1
Plate holder, opening width 2 - 35 mm 06509-00 1
Bench clamp 02012-00 1
Cord pulley 06558-01 1
Crank handle 06559-01 1
Iron core, U-shaped, laminated 06501-00 1
Iron core, I-shaped, laminated 06500-00 1
Pins for iron cores, U-shaped 06502-00 1
magnet, l = 72mm, rodshaped, colored poles 07823-00 1
Lamp holder E10, on base plate 06002-00 1
Filament lamps 4V/0.04A, E10, 10 06154-03 1
Filament lamps 3.5V/0.2A,E10, 10 06152-03 1
Filament lamp 6 V/3 W, E10, 10 pcs. 35673-03 1
Connecting cable, 32 A, red, various lengths 07362-01 3
Connecting cable, 32 A, blue, various lengths 07362-04 3
Connecting cable, 32 A, black, various lengths 07362-05 4

Necessary accessories

DEMO advanced Physics Electromagnetism 1, necessary acessories 25573-01

Recommended accessories

Moveable experimental table 90 x 75 cm, 30 mm table top withPP edge, with shelf for 3 boxes and socket board 15500-00
