Technical data

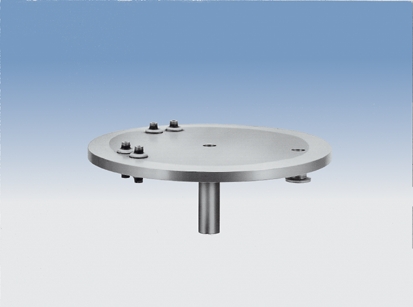

Pump plate, aluminum

Article no: 02668-01

Function and Applications

Pump plate

Equipment and technical data

  • Aluminium plate with 280 mm diameter, four electrical bushes insulated from the plate
  • eccentric connection flange DN 10, which for example can be used as a measuring connection for vacuum systems
  • The device is equipped with a central connection flange IGJ19/38

Recommended accessories

Clamping ring DN 10 and DN 16 02668-03
Centering and sealing ring DN 10 02668-04
Supp.rod f.pump plate IGJ 19/38 02668-05
Bell jar, with knob and sealing ring 02668-10
