Technical data

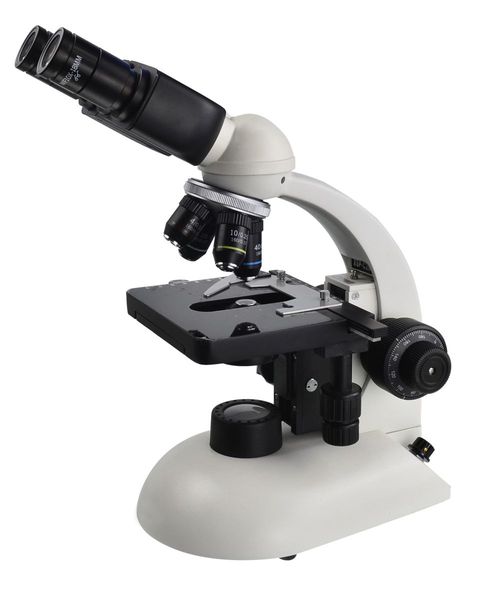

PHYWE Binocular student microscope, 1000x, mechanical stage

Article no: MIC-129A

Function and Applications

Modern binocular student microscope, 1000x magnification, with mechanical stage, LED illumination and rechargeable battery.

Benefits

  • Ideal to purchase in bulk, for equipping microscopy classes and lab courses
  • 1000x magnification
  • Mechanical stage
  • Long-life and very bright LED illumination
  • Resists to tilting on the table

Equipment and Technical Data

  • Binocular head with eyepieces WF10x/18 mm, high eye point
  • Achromatic objectives 4x, 10x, 40x (S), 100x (S, oil)
  • Nosepiece for 4 objectives with click stops
  • Mechanical stage: size 140 x 130 mm, moving range 78 x 30 mm
  • Coaxial fine and coarse focussing with markings on fine focussing
  • Illumination: 3 W LED (color temperature 5000 K), adjustable
  • Condensor: Abbe N.A. 1.25 with iris diaphragm
  • Integrated power supply 100…240 V, 50/60 Hz
  • rechargeable battery for off-the-grid operation
  • Includes dust cover
  • Dimensions: 38 cm x 21 cm x 23 cm (H x W x L)
  • Weight: 5.5 kg
  •



Scope of delivery

PHYWE Binocular student microscope MIC-121A, 400x, mechanical stage MIC-121A 1
Objective 100x, N.A. 1.25, achromatic, for MIC-100 series MIC-100X 1

Necessary accessories

Spare eyepiece WF 10x/18mm, for MIC-100 series, 1 piece MIC-10X

Recommended accessories

Eyepieces WF 16x/13mm, for MIC-100 series, 1 pair MIC-16X
Eyepiece WF 10x/18mm with pointer, for MIC-100 series MIC-10XP
Eyepiece WF 10x/18mm with micrometer scale, for MIC-100 series MIC-10M
