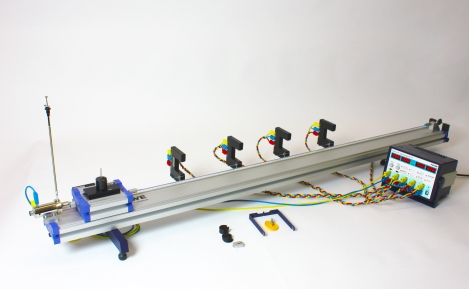

Uniformly accelerated motion with an accelerating mass with the demonstration track and the timer 4-4  ![]()
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
Principle If a constant force acts on an object, the object is subject to
constant acceleration. The aim of this experiment is to use a
uniformly accelerated cart in order to demonstrate that its
velocity increases linearly over time and that the dependence of
the distance on the time can be described by way of a parabola. Benefits - Accurate results due to measurements with low friciton: cart
with sapphire bearings
- Over the entire track length adjustable feet for a very simple
alignment of the track even on small tables
- Extrem robust accessories, for example no overloading of cars
due to elastic bearing of base plate, prevent unnecessary
breakdowns
- Timer 4-4 can be used for almost every experimental requirement
: distance-time law for four tracks, measurement of speed at four
positions, principles of collisions, measurement of the orbiting
time of a rotary movement, the direct measurement of the duration
of a complete swing of a mechanical pendulum and for short or
long-term measurements with two 8-digit displays by connecting each
of 2 timers
Scope of delivery |
Demonstration track, aluminium, 1.5 m
|
11305-00
|
1
| |
Cart, low friction sapphire-bearing
|
11306-00
|
1
| |
Shutter plate for low friction cart, width: 100 mm
|
11308-00
|
1
| |
Needle with plug
|
11202-06
|
1
| |
Tube with plug
|
11202-05
|
1
| |
Plasticine, 10 sticks
|
03935-03
|
1
| |
Compact - Light barrier
|
11207-20
|
4
| |
Holder for light barrier
|
11307-00
|
4
| |
Weight for low friction cart, 400 g
|
11306-10
|
1
| |
Slotted weight, silver bronze, 10 g
|
02205-03
|
4
| |
Slotted weight, silver bronze, 50 g
|
02206-03
|
3
| |
Slotted weight, blank, 1 g
|
03916-00
|
20
| |
Weight holder, silver bronze, 1 g
|
02407-00
|
1
| |
Silk thread, l = 200 m
|
02412-00
|
1
| |
Holder for pulley
|
11305-11
|
1
| |
End holder for demonstration track
|
11305-12
|
1
| |
Pulley for demonstration track
|
11305-10
|
1
| |
Starter system for demonstration track
|
11309-00
|
1
| |
Magnet w.plug f.starter system
|
11202-14
|
1
| |
PHYWE Timer 4-4
|
13604-99
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07363-01
|
4
| |
Connecting cable, 32 A, yellow, various lengths
|
07363-02
|
5
| |
Connecting cable, 32 A, blue, various lengths
|
07363-04
|
5
|
|
