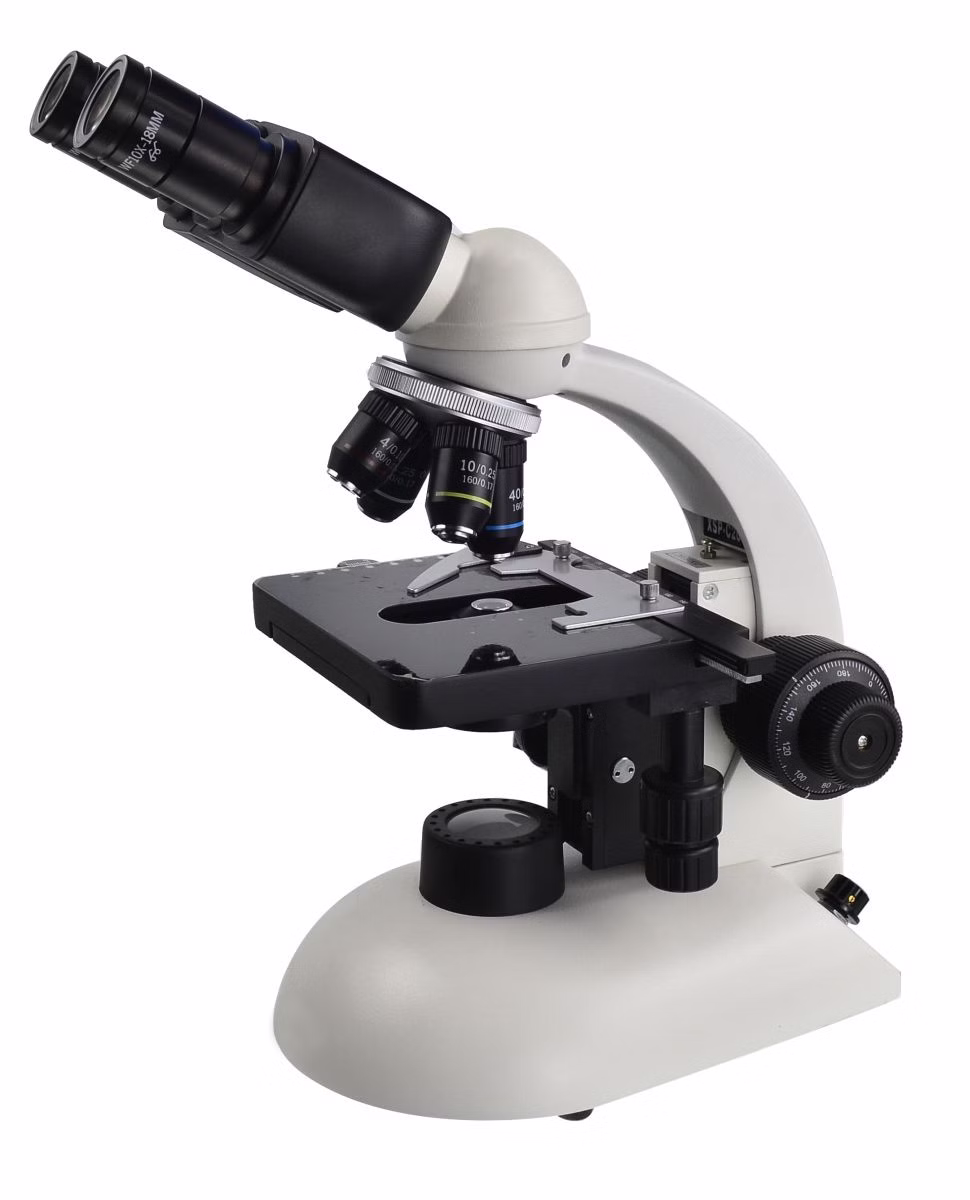

PHYWE Binocular student microscope, 1000x, mechanical stage



Function and Applications

Modern binocular student microscope, 1000x magnification, with mechanical stage, LED illumination and rechargeable battery.

Benefits

• Ideal to purchase in bulk, for equipping microscopy classes and lab courses
• 1000x magnification
• Mechanical stage
• Long-life and very bright LED illumination
• Resists to tilting on the table

Equipment and Technical Data

• Binocular head with eyepieces WF10x/18 mm, high eye point
• Achromatic objectives 4x, 10x, 40x (S), 100x (S, oil)
• Nosepiece for 4 objectives with click stops
• Mechanical stage: size 140 x 130 mm, moving range 78 x 30 mm
• Coaxial fine and coarse focussing with markings on fine focussing
• Illumination: 3 W LED (color temperature 5000 K), adjustable
• Condensor: Abbe N.A. 1.25 with iris diaphragm
• Integrated power supply 100…240 V, 50/60 Hz
• rechargeable battery for off-the-grid operation
• Includes dust cover
• Dimensions: 38 cm x 21 cm x 23 cm (H x W x L)
• Weight: 5.5 kg
•
