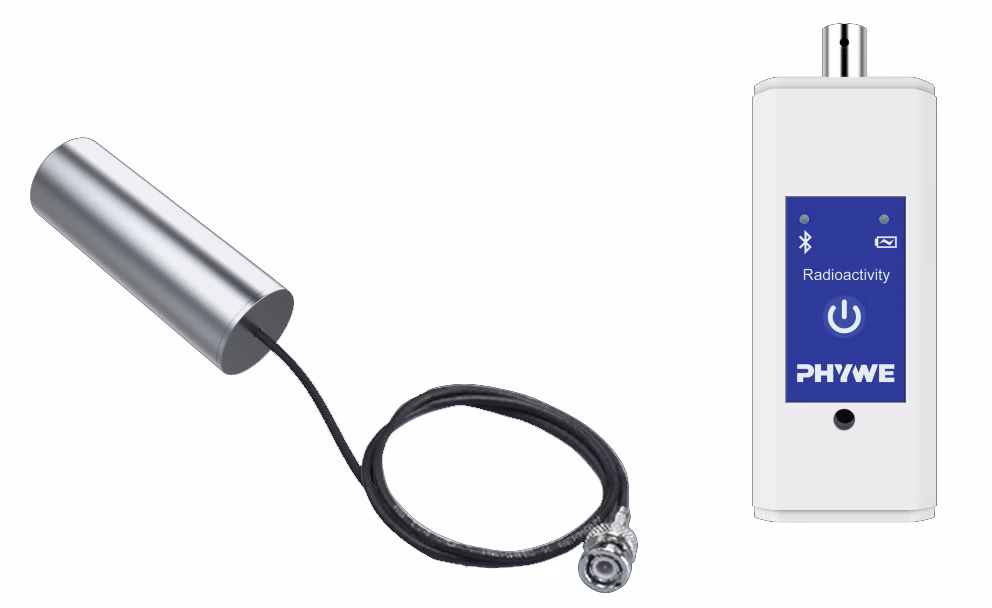

Cobra SMARTsense Radioactivity - Sensor for measuring radioactive radiation 0 ... 40000 #/min (Bluetooth + USB)

Function and Applications

Use the Cobra SMARTsense Radioactivity to measure alpha, beta and gamma radiation with up to 40,000 counts/min (cpm) and investigate the basic concepts of radioactivity with your pupils in a child’s play way.

With sampling rates of up to 10 Hz and a resolution of 1 count, the digital radioactivity sensor can be used flexibly in experiments ranging from background radiation to the behaviour of radioactive radiation in a magnetic field.

Connect the Cobra SMARTsense Radioactivity wirelessly via Bluetooth or wired via USB to the free and award-winning measuring software measureAPP – available for iOS, Android, Windows and Linux.

Switch on. Connect. Start measuring.

Benefits

• Get started straight away with any Bluetooth-enabled device and the free measureAPP.
• Intelligent and efficient power management for up to 50 teaching hours on one battery charge.
• Up to 10 readings per second guarantee precision.
• Simple and mobile measurement of radioactivity in the environment.
• The sensor can also be used in the X-ray device XR 4.0 expert unit, X-ray device 35 kV (article number 09057-99).
• The sensor detects alpha, beta and gamma radiation and, in addition to recording measured values, can output the detected radiation pulses via an acoustic signal (setting in the measureAPP).

Technical Specification

• Measuring channel:
  Pulse counting / decays over gate time
  • Measuring range: 0 … 40,000 cpm
  • Resolution: 1 count
  • Sampling rate: 10 Hz

• Bluetooth version: 5.0
• The corresponding Geiger–Müller counter tube is included.
• Battery: Rechargeable lithium polymer battery
• Included: USB-A to USB-C charging cable
