Blockolino Basic Set

Function and Applications

Programs surround, entertain and support us: They switch traffic lights, play music for us, and even open doors. But how? Blockolino guides your learners in answering this question. They create their own programs in no time and use sensors, actuators and Blockly to master the basics of programming in a playful way!

The Blockolio Basic Set offers flexibility for many applications with 5 sensors and 5 actuators. For example, an LED or a motor can be controlled with a button or a simple smart home can be programmed.

Sensors and actuators are magnetically docked onto a LinoLink and supplied with power. Each LinoLink communicates wirelessly (Bluetooth 5.1) with the control center, where the programs are executed. Using software, the programs are transferred to the control center (via Bluetooth or USB).

Watch the Blockolino in action (video in German)!

Benefits

• Hardly any programming knowledge required: Start coding right away with Blockly for learners from primary school level


• Freely combinable: Compatible with many building block systems for creative makers


• Interactive control: Via a mobile or desktop app and the programmable LinoHub control center


• Unlimited freedom: LinoLink and LinoHub control center as well as LinoHub and end device communicate via Bluetooth


• Wide range of applications: From simple on/off circuits to simple smart home solutions


• Cross-curricular use: Suitable for science, STEM subjects or computer science


• Easily expandable from the Extension Set (14800-66) to the Expert Set (14800-88)


• Expandable: Can be extended at any time with additional sensors, actuators and LinoLinks


• Always ready: LinoLinks remain in standby mode and connect within seconds


• Magnetic modules: Stable and simple connection


• Quick-change technology: Easy replacement of sensors and actuators

Equipment and Technical Data

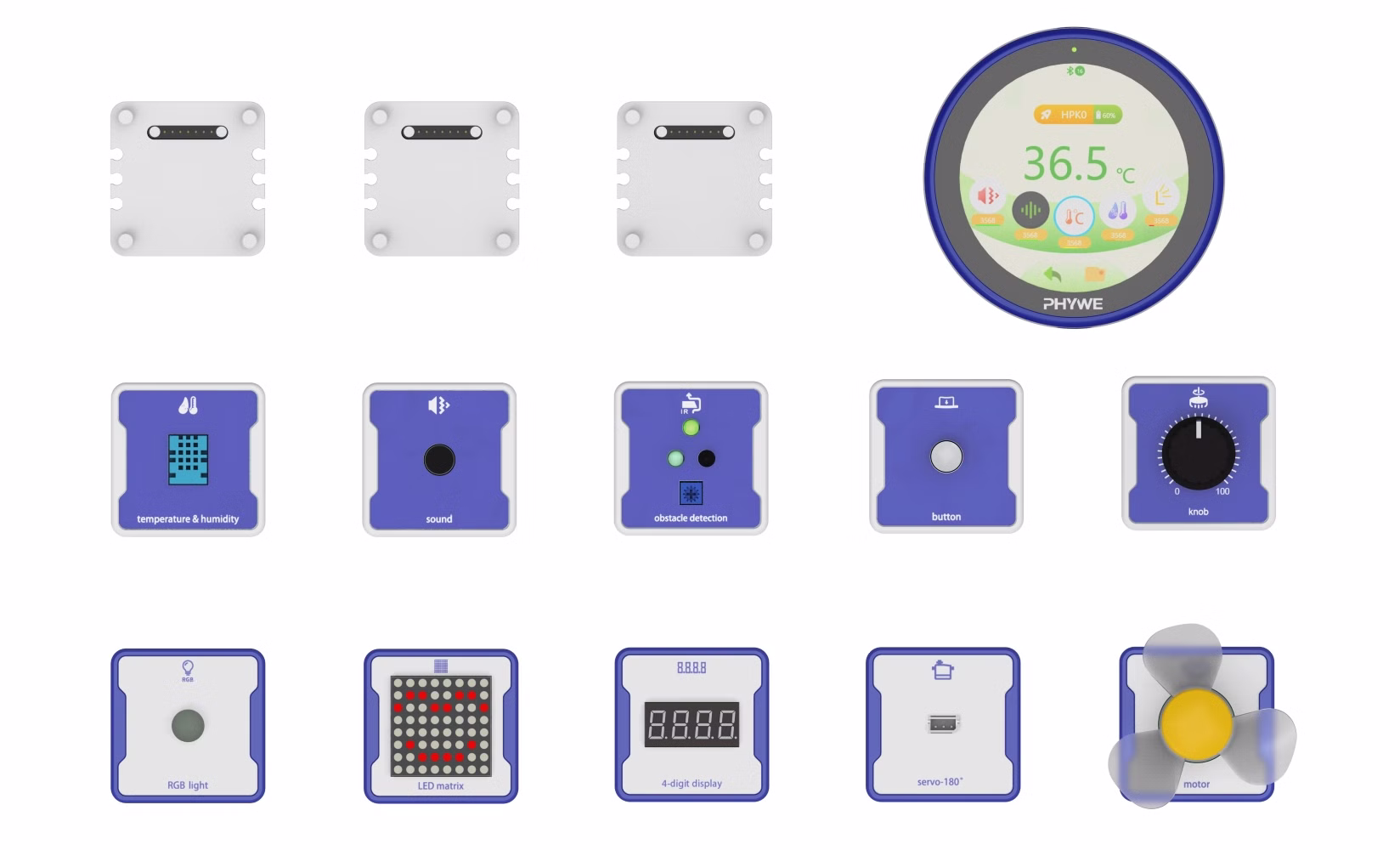

Scope of delivery

• 1 LinoHub control center incl. charging cable (USB-A to USB-C)


• 3 LiinoLinks

• 5 sensors:

• Temperature & Humidity
• Sound
• Obstacle Detection
• Button
• Knob

• 5 actuators:

• RGB Light
• LED Matrix
• 4-digit Display
• Servo-180°
• Motor

• 1 charging station for 8 LinoLinks incl. charging cable

Software

• Supported platforms: Windows / iOS / Android

LinoHub control center

• Display: 2.8 inch TFT 480×480 px capacitive color display


• Memory: 24 GB


• Max. wireless connections: 19


• USB Type-C


• Bluetooth 5.1


• Battery life: ≥ 40 hours, in use up to 6 h


• Standby: > 6 months


• Operating temperature: –10 °C to approx. 50 °C


• Firmware update via USB

LinoLink

• Battery life: ≥ 3 hours


• Firmware update via USB
