The simple electrical circuit
Article no. P1371600 | Type: Experiments
The students should first perceive that an electric current can only flow in a closed circuit. To achieve this, the simplest possible circuit is used, in which there is neither a series or parallel connection, and which is therefore called the simple circuit.
The students should memorise which components or elements were used, their functions and the symbols to represent them.
- No additional cable connections between the building blocks needed - clear arragned and quick setup
- Contact saftey due to puzzle blocks system
- Corrosion-free gold plated contacts
- Doubled earning sucess: Electric circuit diagram on top, real components can be seen unterside
What does a "simple circuit" consist of?

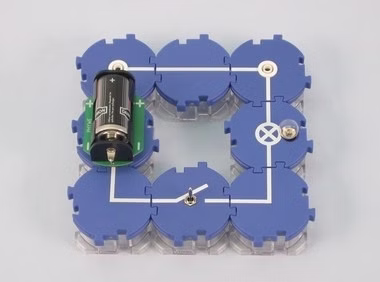

Set up an electric circuit including a filament lamp, then familiarise yourself with the function of each of the individual components and how they work together.
