Service

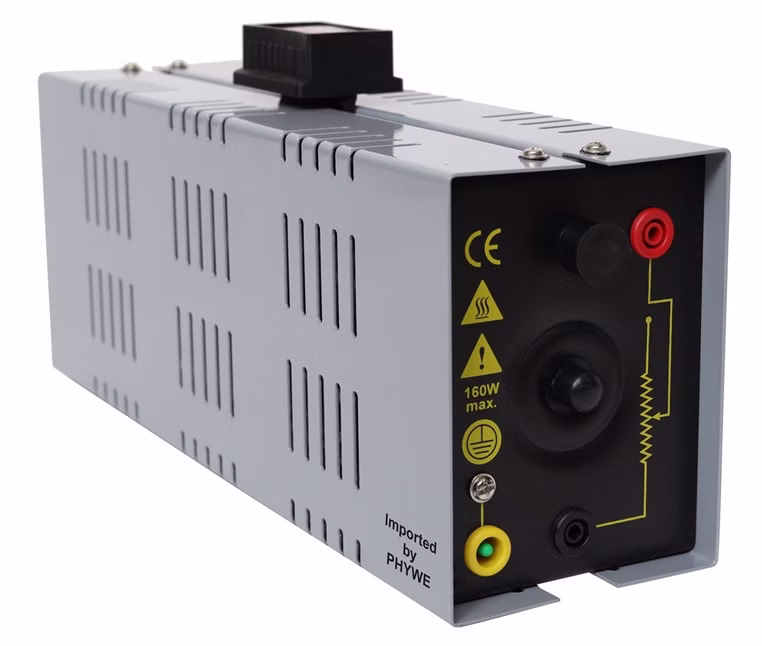

Function and Applications
Suitable as protective resistors or voltage dividers.
Equipment and technical data
- Resistance 33 Ohm, ± 10%
- Four 4 mm safety sockets, of which one to earth the casing.
- 160 W
- High load capacity (2,2 A)
- Short-term load: > 220 W (max. 320 W) for max. 15 min
- Safely enclosed in a metal casing.
- Casing dimensions (mm): 330 × 75 × 140.
Device name
Article no.
Article no. P2410800
Name
File name
File size
File type
(de) Bedienungsanleitung
0611003d .pdf
File size 0.24 Mb
pdf
(en) Operating intructions
0611003e .pdf
File size 0.24 Mb
pdf
